3 Introduction

The intention of this operation manual is to provide system administrators sufficient background knowledge to install EWA, configure it and handle usual problems and errors that may occur during EWA setup, configuration and in daily operation. In order to do this an overview over the system architecture of EWA and its core framework is given. The next sections describe general setup and configuration tasks. Additionally, details of some specific topics (like e.g. log information) are provided. A "Frequently Asked Questions" (FAQ) section completes this document.

However, it is not (and cannot be) the aim of this document to provide guidelines to resolve problems originating from third party components like problems setting up an application server or a database system on several Windows OS environments, configuring firewalls to allow user access, integrating EWA in other environments (Web- or Application Servers other than the ones supported), running several versions of programs (e.g. several versions of the Java Runtime Environment) at the same time etc.

3.1 "EWA Central" vs. "EWA local"

EWA is a server based, distributed application. There are two main differences in the application deployment which will be called "central" and "local" – you will notice these terms often within this document.

Central: this installation type means a centrally hosted server environment which is typically used not only for a single workshop but i.e. for a whole market as Internet based application. Installation and Updates will be performed by experienced system administrators. The server and database software is somehow more advanced (and typically needs separate licensing) then the software from the "local" environment.

Local: this type of installation typically refers to an installation within a local workshop. It has other needs for installation, maintenance and performance. Installation and Updates will be supported by automatic processes. And the software requirements are not as "challenging" as the ones for the "central" environment.

3.2 Target audience

This document has been written for system administrators with at least basic knowledge of

• Windows (incl. Server) operating systems
• Java and Java Runtime Environments. You should know what an exception is and how to follow a stack trace
• XML concepts and editing XML files
• SQL language in general

3.3 Definitions

Following definitions shall help to describe the installation from a more generic view. These definitions or properties do not have to be available as operating system variables. They shall just provide some kind of abstraction throughout this documentation.

The following text will refer to these definitions as [property].

Example:
A "[EWA_HOME]\config" path will have to be expanded by you for your local settings to i.e. "C:\EWA_net\config".

3.4 Terms

This section lists some terms that are being used within this document.

4 Requirements

4.1 Delivery Media

For the installation to take place, you need at least following items:

• A set of DVDs containing EWA and the EPC database files (typically 4 DVDs (9) - 1 EPC Baseline DVD containing EPC Baseline data and EWA software and 3 EPC Archive DVDs containing EPC archive data)
• A set of DVDs containing EWA and the WIS database files (typically 2 DVDs (9) for a full version of WIS data where EWA software is contained on first disk or 1 DVD (9) for an update version of WIS. The update version requires the second disk of the matching full version of WIS.)
• A set of DVDs containing EWA (typically 1 DVD (9) for a EWA Software-only DVD)
• The correct access authorization key(s) for the software from Daimler AG. You will be able to install the software components before you have the access authorization keys, but you will be enforced to enter the access authorization keys before setting up the databases. And the system will not run without the databases being set up.

4.2 Software

As mentioned in the previous chapter the EWA server and client components are completely based on Java.

The components on the client side are started by means of "Java Web Start". Starting with Java 2 (jre-packages 1.4 and above) "Java Web Start" is part of the "Java Runtime Environment" installation.

Apart from a Web-Browser (like Internet Explorer) and a working JRE (which in turn includes Java WebStart) there are no other software requirements on the client side. The JRE on client side needs to be at least version 1.6, it is recommended to use version 1.7, though. Installation of the EWA client components is done automatically via "Java Web Start".

On the server side a Web-Server, a Servlet Container (or J2EE Application Server), an installed user database, the EWA core framework and the applications including the according application databases need to be installed.

For EWA "central" Tomcat serves as Web- and Application server. MS SQL, DB2 or TransBase is used as the database for user information. Web-Archives (.war) files contain the program logic for the Access Gateway, User management, WIS and EPC. Program modules within these Web-Archives are being executed by the servlet container each time a request is sent by a user.

For EWA "local" Tomcat serves as Web- and Application server. TransBase is used as the database for user information. Web-Archives (.war) files contain the program logic for the Access Gateway, User management, WIS and EPC. Program modules within these Web-Archives are being executed by the servlet container each time a request is sent by a user.

Additionally, two TransBase databases are being used, one for WIS and another one for EPC.

Other services and programs used for instance by EPC FP and WIS classic (like the access authorization Service, Program Manager etc.) are not required for EWA.

Since some of the mentioned server components do only run on a Windows environment, it is necessary to use MS Windows as the server side operating system.

4.2.1 Application server / Database server machine

[EWA-HOME]\client-apps\jre\jre.exe

4.2.2 Client machines

The client machines will not be covered by the installation process. But in order to allow execution of the client software, following software must be installed on the client systems:

[EWA-HOME]\client-apps\jre\jre.exe

4.3 Hardware

The hardware requirements for the EWA servers have to take two things into account.

• The above mentioned software requirements.
• The number of users accessing EWA.

This section is intended to give a general reference that has to be adjusted individually for the environment the individual setup is intended to run in. For detailed and more recent requirements please check the Rollout Plan provided by Daimler AG.

Table: EWA Server Hardware

Table: EWA Client Hardware

Four default configuration types have been defined:

1. Central/Big:
   Central installation for large number of users connected via Internet, Intranet, Extranet, VPN; custom application server and write database
2. Central/Small:
   Central installation for limited number of users connected via Internet, Intranet, Extranet, VPN; modified standard EWA server installation (extended database)
3. Local/Big:
   Workshop-central server for local LAN clients and workshop subsidiaries; standard EWA server installation, modifications for failure safety possible; no Internet connection
4. Local/Medium-Small:
   Standard EWA installation on single PC or Workshop server (PC); no Internet connection

The following hardware configurations have been defined:

Since EWA does not differ to other Web applications in this respect the same guidelines apply.  As a general rule it can be said that the amount of system memory is more important than the power of the CPU.

4.4 Network

• Fixed IP Addresses (no DHCP) for the application server and system database machine are recommended to be used to prevent problems with name resolving.
• Open ports like specified below:

5 Installation

This chapter covers the installation steps for the application server, the database and the EWA core framework (including Access Gateway and User management).

5.1 EWA “local”

5.1.1 Run the installer

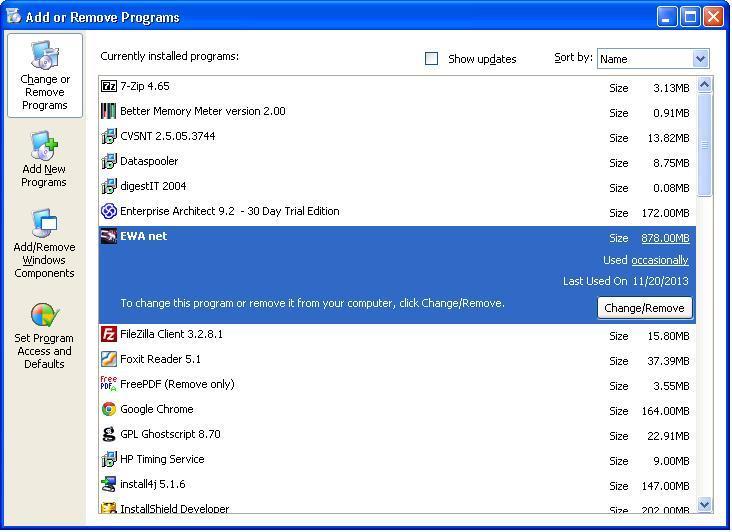

If a previous local version was already successfully installed and the user has not started the installer in unattended (the installer makes some assumptions for the user, i.e. ewa installation directory or installation language) or forced mode, the installer will stop when called in such an environment and ask you to make use of the Update program "AdminTool" (you will learn about this later on).

Installation

Login to Windows as Administrator or user who is part of the Administrators group.

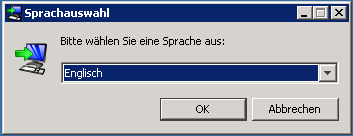

Take your DVD of the EWA DVD release set and execute the setup file from

[DVD-DRIVE]:\ewa\setup.exe

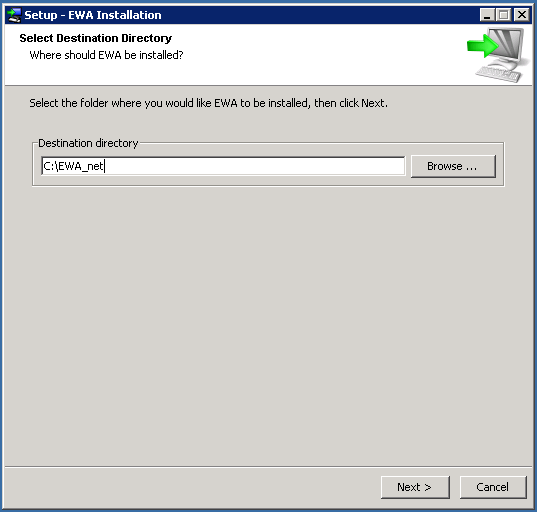

In our example installation our path was set to “C:\EWA_net”. If you use a different path for your installation, the given command and configuration examples need to be adopted to your folder structure. By default the installer suggests the installation into the Windows standard program files folder - which is perfect for "local" EWA installations.

The installation should finish without any error messages.

5.1.2 Check the services

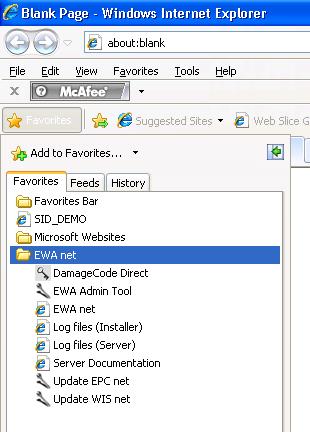

After the installation you will find some new links within the Favorites of your Internet Explorer

With the EWA Admin Tool you should now check the services.

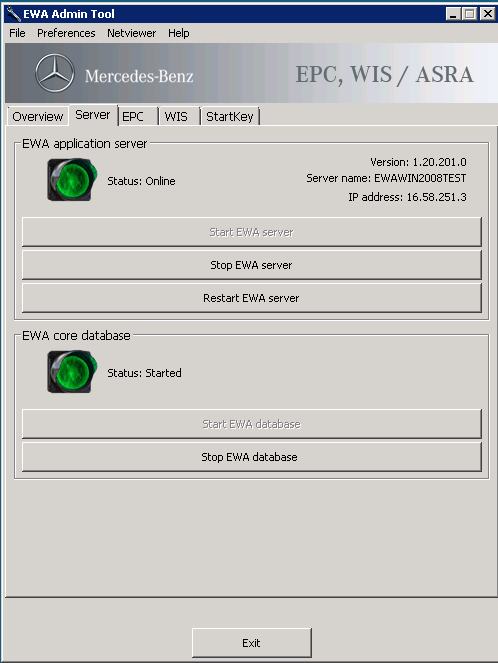

The tab "Server" must display two green traffic lights, the traffic lights in the tabs "EPC" and "WIS" will remain dark until you installed the database content.

5.1.3 Register the access authorization(s)

For licensing open the EWA website (use the favorite in Internet Explorer to do so. If you performed an standard installation, you might also click here).
You will be asked for a username and password. On an initial installation these values will be

Admin Username = admin
Admin Password  = admin

Note:
You will immediately be asked to change your password now. Ensure you remember what you enter here.

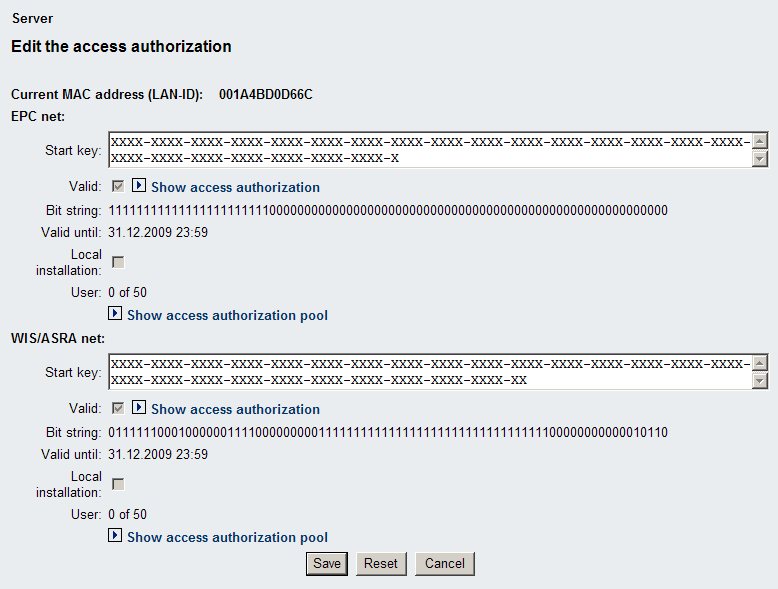

Under the Button “Administration/Server/Edit the access authorization” you will find the input fields for the StartKey.

5.1.4 Add a first Group and first User

Please refer to the UserManagement manual to setup users and groups to be able to work with the system. To complete the basic installation you don't need to do this right now.

5.2 Install database content from DVDs

Retrieval Database content installation (for WIS and EPC) as well as whole EWA system updates will be performed by the EWA Admin Tool. This is a windows executable that gives you an administrative interface to some system tasks like services control, software update, database clean up, ...

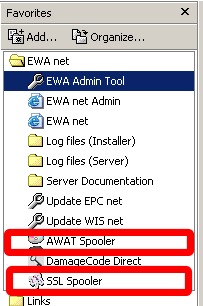

You will find this tool after installation in the “Favorites” in the folder “EWA” of your Internet Explorer.

For detailed information please refer to the corresponding EWA Admin Tool documentation. ‎It describes in detail how to install new database content for both EPC and WIS.

5.4 Quick check of the installation

5.4.1 Check on the server

In order to verify whether all components have been correctly installed and configured it is now time to reboot your system. After having rebooted, start the Internet Explorer.

In order to check the  functionality of the administration go to the following URL:

http://localhost:9000/EWA-net

or use the “EWA net” Favorite in “EWA net” folder of the Internet Explorer. You should see the EWA start page. Log in as administrator - this is currently the only user being setup in the system.

The default Admin user name and password are set by the installers to:

• User name : admin
• Password  : admin

5.4.2 Check on the client

If you want to check whether your clients are well prepared to perfectly run EWA, please assure the following manually steps have been completed as there are no automatic installation steps for the client:

• Assure that a “ping <servername>” command to your EWA server is successful from the clients you want to run EWA on, where <servername> has to be replaced by the name of your EWA system server.
• Assure that your Proxy settings in Internet Explorer are correct and you can access the EWA server when pointing it to http://<servername>:9000/EWA-net
• Install the correct Java Runtime Environment from Sun Microsystems. Use the one provided on the delivery media of EWA or assure that a supported JRE is already installed.
  You can easily find out about this feature if you open the Internet Explorer, log in as administrator and go to the "Download" section.





  A small Active/X script will check your client for a supported Java Runtime. If - due to security restrictions - this code cannot be executed, please check your Software control panel for the correct Java Runtime.

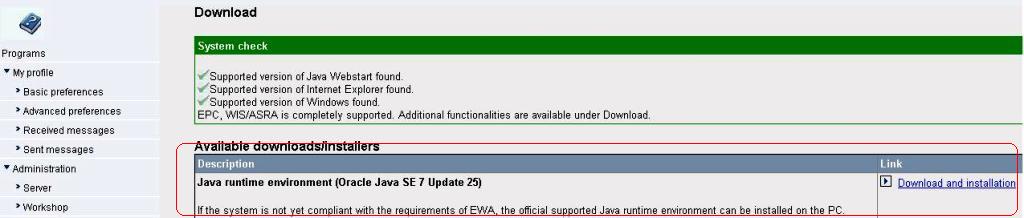

• If you need to install a JRE, please simply download and install the one provided in the "Download" section of EWA.




• Assure that you do not install any other Java Runtime after installing the one for EWA.

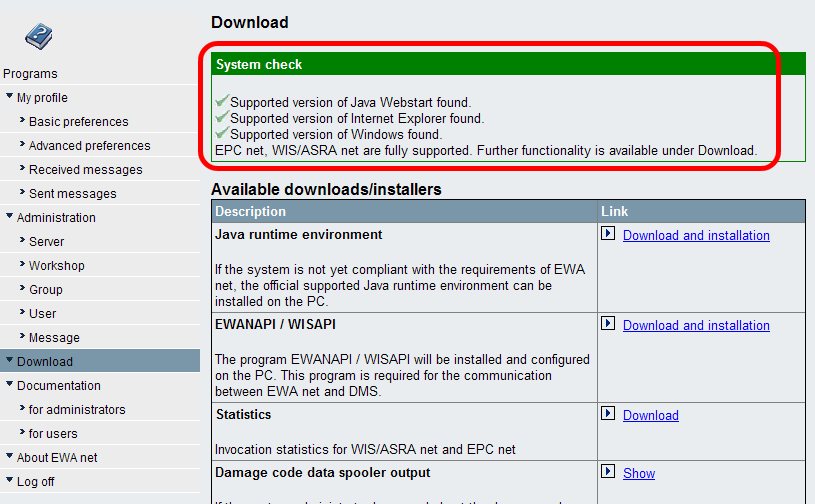

• To easily determine whether also your WebStart Environment is setup correctly, click onto the EWANAPI "Download / Install" button to make the EWANAPI client installer run.




  If it shows its GUI correctly, just close that installer and you will be fine. Nothing happened on the client. If the test failed, you should open the WebStart Control Panel and see that the Proxy configuration matches your environment.

Congratulations!

You have successfully setup a standard EWA server. To configure the system to your needs (i.e. make use of a different authentication system), please refer to the chapters about EWA configuration and advanced configuration to make the best out of your installation.

6 EWA Configuration

Many of the settings below can easily be configured via the administrative Web interface of EWA. But there is even more that can be performed by modifying the underlying XML files.

Important Note:
As mentioned earlier you should have reasonable experience and a good understanding of XML before you start editing the files mentioned below. You may easily make your EWA server fail to start even with small syntactical errors in the files.

6.1 EWA Application Server Settings

Note:
Some basic settings described here (like email Server, access authorization reminder, feedback,...) can also be modified by a user with System Administrator user role from within EWA's server administration masks.

6.1.1 core_cfg.xml

The behavior of the AccessGateway and each HP Service as well as some general settings can be configured in the [EWA_HOME]\config\core_cfg.xml file.

Example:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<xml>
        <SECTION name="Services">
                <SECTION name="MailService">
                        <!-- Parameter emailEnabled: Set this to "true" or "false" if the Email Service is active and -->
                        <!--                         sending Emails.                                                  -->
                        <PARAMETER name="emailEnabled">true</PARAMETER>
(...)
</xml>

Table: core_cfg.xml

6.1.2 license.xml

Location: [EWA_HOME]\config\license_cfg.xml

This configuration file contains the server access authorizations for EPC and WIS of the EWA application server.

Example:

<?xml version="1.0" encoding="UTF-8"?>
<xml>
<SECTION name="Licenses">
     <PARAMETER name="wis">J9GF4AXXXXXXX...</PARAMETER>
     <PARAMETER name="epc">ZYVND3XXXXX...</PARAMETER>
</SECTION>
</xml>

Table: Section "Licenses"

Note:
If your server runs several redundant LAN adapters you might get server access authorizations for each of these LAN adapters and add those access authorizations comma or semicolon separated here to support high availability.

6.1.3 um_cfg.xml (and um_batch_cfg.xml)

These files are located at [EWA_HOME]\config\um_cfg.xml

These configuration files contains all configuration concerning user management. The file um_cfg.xml is used for online authentication whereas um_batch_cfg.xml contains the configuration for batch calls as they are used for instance by "EWANAPI.exe". Within the config files it is defined which authentication mode to use and what the connection parameters to the authentication / authorization datastores look like.

Example:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<xml>
    <SECTION name="General">
        <!-- Type of user management; valid Entries are: StarTekInfo, HPUserManagement -->
        <PARAMETER name="userManagementService">HPUserManagement</PARAMETER>
(...)
</xml>

Table: Section "General"

Contents of section "CorporateDirectory":

• The following section "CorporateDirectory" is only used, if in the previous section "CorporateDirectory" was selected as authentication mode.
• All data is issued by those persons within Daimler, who are responsible for the Corporate Directory

Table: Section "CorporateDirectory"

Contents of section "LDAP"

• The following section "LDAP is only used, if in the "General" section "LDAP" was selected as authentication mode.

Table: Section "LDAP"

For more information about the LDAP configuration, please see the chapter about User Management configuration.

Contents of section "UserManagementURL"

• The following section "UserManagementURL is only used, if in the "General" section "Own" was NOT selected as authentication mode.

Table: Section "UserManagementURL"

Contents of section "External"

• The following section "External is only used, if in the "General" section "HPUserManagement" was NOT selected as userManagementService.

Table: Section "External"

6.1.4 secure_linkout_cfg.xml

The behavior of the Secure Linkout and SD Media feature of EWA (token generation to access sensitive data) is configured in the [EWA_HOME]\config\secure_linkout_cfg.xml file.
URLs configured to use the Secure Linkout or SD Media mechanism will be appended by some additional parameters when opened by the client applications WIS or EPC.

Example:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<xml>
        <!-- All settings for the secure linkout -->
        <SECTION name="SecureLinkoutConfig">
                <!-- Trigger to enable secure linkout mechanism -->
                <PARAMETER name="EnableSecureLinkout">true</PARAMETER>
                <!-- Section that is used to list URLs to the Retail Factory's Secure Linkout Server providing additional multimedia documentation material for WIS/ASRA -->
                <SECTION name="SecureLinkout">
                        <!-- The URLs to the productivly used documentation material -->
                        <SECTION name="URLs">
                        <PARAMETER name="totalAmount">6</PARAMETER>
                        <PARAMETER name="1">http://retailfactory.mercedes-benz.com/XBC/index.html</PARAMETER>
(...)
</xml>

Contents of section "SecureLinkoutConfig"

Table: "secure_linkout_cfg.xml" - Section "SecureLinkoutConfig"

6.1.5 additional_downloads_cfg.xml

This is an optional file which will neither be installed by the installer nor be updated or modified by any software installation process. Thus if you want to integrate your own download sections within EWA's download section please follow this short description and have a closer look into an example file which will show you how to customize your environment in respect to download options.

The configuration file will be read each time the download page will be shown so you may customize it without the need of restarting the EWA server.

The file must be created and stored within the [EWA_HOME]\config folder with the given name additional_downloads_cfg.xml.

The basic structure of the file is as this:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<xml>
        <!-- Section to enter further downloads to the download area -->
        <SECTION name="AdditionalDownloads">
        ....
        </SECTION>
</xml>

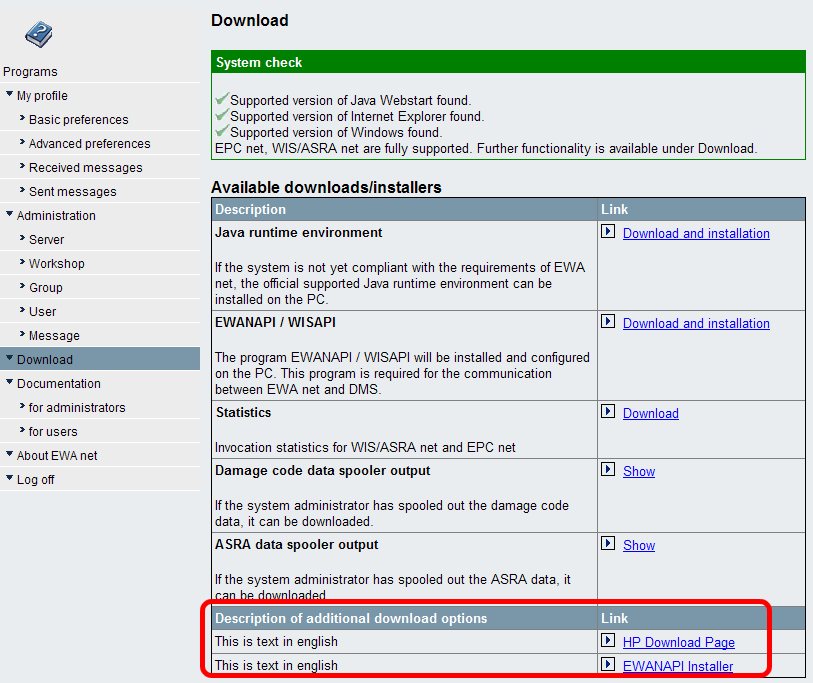

What we have created up to now is an extension of the downloads section with exactly 0 new entries. So we need to add the subsections which will show up inside the download area. We add an enumeration of sections called "AdditionalDownload_x" where x is a number from 1 to the number of sections you want to add.

Example:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<xml>
        <!-- Section to enter further downloads to the download area -->
        <!-- UserRoleForApplication can take more than one value, the roles should be comma separated -->
        <!-- The valid values for UserRoleForApplication are: ServerAdmin, WorkshopAdmin, WorkshopUser -->
        <!-- The default value for UserRoleForApplication is WorkshopUser, WorkshopAdmin, ServerAdmin -->
        <SECTION name="AdditionalDownloads">
                <!-- Start your enumeration with value "_1" and enumerate your keys from there -->

                <SECTION name="AdditionalDownload_1">
                        <!-- Description can be provided multiple times if you want to specify descriptions in different languages -->
                        <!-- But then ensure there is at least one default text without "locale=" specification -->
                        <PARAMETER name="Description" locale="en">This text will show up in anglish &lt;br&gt;if browser requests english</PARAMETER>
                        <PARAMETER name="Description" locale="de">Dieser Text erscheint in Deutsch wenn der Anwender Deutsch als Sprache eingestellt hat</PARAMETER>
                        <PARAMETER name="Description">This is the default text which will show for all other browser languages. We better use English here :)</PARAMETER>
                        <!-- Location to download, absolute path or, by use of URL-Rewriting, a relative EWA Server reference -->
                        <PARAMETER name="URLofDownload">http://www.hp.com</PARAMETER>
                        <PARAMETER name="LinkText" locale="en" >Have a closer look on the HP Page i.e. for Driver Updates</PARAMETER>
                        <PARAMETER name="LinkText" locale="de" >HP Download Seite</PARAMETER>
                        <PARAMETER name="LinkText">HP Download Page</PARAMETER>
                        <!-- User Role that has access to this download. If not specified, all users may have access to it -->
                        <PARAMETER name="UserRoleForApplication">WorkshopUser, WorkshopAdmin, ServerAdmin</PARAMETER>
                </SECTION>

                <SECTION name="AdditionalDownload_2">
                        <PARAMETER name="Description">The link for the EWANAPI Installer provided here again</PARAMETER>
                        <!-- Location to download, absolute path or, by use of URL-Rewriting, a relative EWA Server reference -->
                        <PARAMETER name="URLofDownload">/EWA-net/ewanapi_installer.jnlp</PARAMETER>
                        <!-- Shall we include/do we need to include session information in the URL? Default: false -->
                        <PARAMETER name="URLdoRewriting">true</PARAMETER>
                        <PARAMETER name="LinkText">EWANAPI Installer (again)</PARAMETER>
                </SECTION>

                <SECTION name="AdditionalDownload_3">
                        <PARAMETER name="Description">Download and run a setup located at [EWA_HOME]\downloads\test\Setup.exe</PARAMETER>
                        <!-- Location to download, absolute path or, by use of URL-Rewriting, a relative EWA Server reference -->
                        <PARAMETER name="URLofDownload">/EWA-net/download/downloads/test/Setup.exe</PARAMETER>
                        <!-- Shall we include/do we need to include session information in the URL? We MUST use session information to allow access to download below the "downloads" directory-->
                        <PARAMETER name="URLdoRewriting">true</PARAMETER>
                        <PARAMETER name="LinkText">Some sample Setup</PARAMETER>
                </SECTION>

        </SECTION>
</xml>

Following parameter tags can be used:

• Description:
  This element may occur several time and can be localized by specifying a respective "locale" attribute. If no "locale" attribute is given, this text will be chosen as fallback to be displayed as description text in the download area. If the browser provides a preferred locale and a description with this locale can be found it will be used in favor of the fallback description. See the example above.
• URLofDownload:
  This is a URL which shall be referred to. You may want to redirect to another, external URL i.e. just to point to a different location, to open up an HTML document from a different location, make the user download a file from an external source.
  Or you may want to publish your own downloads within the [EWA_HOME]\downloads directory.
  If you want to do the latter, just create a subdirectory below the downloads directory, i.e. downloads\test. Inside this directory you may want to publish a file called Setup.exe. You may then simply create a URL now which then always begins with /EWA-net/download/downloads and then gets extended by the directory structure below the downloads directory. In the given example the resulting URL would look like this:
  /EWA-net/download/downloads/test/Setup.exe
• URLdoRewriting:
  This is basically optional and by default (if not given) set to "false". Valid values are "true" and "false".
  If you want to allow users to download from the EWA "downloads" directory you must set this value to "true". EWA does not allow anonymous downloads for security reasons!
• LinkText:
  This is the text that will shown instead of the pure URL. It can be localized in the same way as the Description. It will show up in the right column within the download overview.
• UserRoleForApplication:
  This is also an optional field. If not given, unrestricted access is given to all EWA users. Following values may be used for restriction:
  - ServerAdmin: Only Server administrators may access this URL
  - WorkshopAdmin: Only Workshop admins may access this URL.
  - WorkshopUser: Only normal Workshop users may access this URL.
  You can combine the user roles by separating them via a colon like this: WorkshopUser, WorkshopAdmin

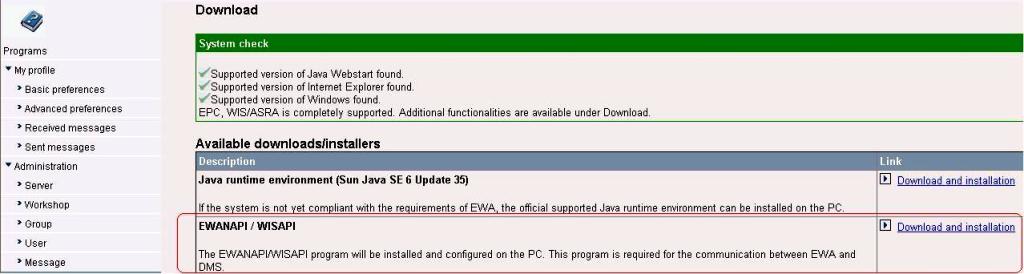

The example from above will result in a download area extension like this:

6.2 Feedback

6.2.1 Introduction

EWA is offering you a direct linkout to the Customer Support & Feedback (XSF) application of Daimler in order to deliver your feedback (corrections of documentation, improvements, handling problems etc.) to the proper parts of the After Sales organization. The problem areas generally occurring in the workshop are clearly defined by so called event categories.

Since several releases the default feedback variant used to submit feedback in EWA is XSF (mode: xml-post). Other options (Email, Fax) are still available, but need to be configured explicitely.

6.2.1.1 Feedback Channel: Fax

6.2.1.1.1 Preconditions

This type of Feedback channel provides the lowest level of integration and process benefit, but is the one that is expected to work almost everywhere - this is why it has been chosen as default configuration. Please choose this channel in case

• you do not have permanent internet access on the side of the EWA server.

• you do not know where you could send Feedback generated emails to or no process has been setup.

In this case the only feasible option to be used is fax. This mode will automatically assemble all the relevant context information from the client applications (EPC, WIS/ASRA), create a printout with feedback information from the client and allow this printout to be faxed. The printed fax will contain the correct fax number to send this fax to.

6.2.1.1.2 Configuration

Steps to be performed on the server side for this configuration are:

1. Go to the [EWA_HOME]\config directory

2. core_cfg.xml: Set the feedback "Modus" parameter to fax.

3. Make a copy of the file feedbackRecipients.xml as faxRecipients.xml.  This should be done to avoid that a software update will override the file.

4. Edit the file and change the default value of the parameter <fax> to the value of your choice where you want/must send your feedback information to.
   Example: <fax>+49 (711) 17-12345</fax>

5. core_cfg.xml:
   Set the feedback file reference parameter "RecipientsConfigFile" to the new filename you have chosen to create above like this:
   <PARAMETER name="RecipientsConfigFile">faxRecipients.xml</PARAMETER>

6. Restart your EWA server and give feedback a try.

6.2.1.2 Feedback Channel: Email

6.2.1.2.1 Preconditions

This type of Feedback channel provides a better integration and process benefit, but can only be used if some preconditions can be met. Please choose this channel in case

• you do have permanent internet access on the server side.

• you have access to an SMTP server - a correctly working EWA Email configuration is needed and will allow you to test this.

• the SMTP standard TCP/IP port 25 is correctly configured in any firewalls on the way to the SMTP server.

If these requirements can be met you may choose  email as your Feedback Channel. This mode will automatically assemble all the relevant context information from the client applications (EPC, WIS/ASRA) and create a feedback email in a specific format. Users will not have.

6.2.1.2.2 Configuration

Steps to be performed on the server side for this configuration are:

1. Go to the [EWA_HOME]\config directory

2. core_cfg.xml: Set the feedback "Modus" parameter to email.

3. Ensure that the EWA email service (Parameter "MailService" is up and running and setup correctly. You may test it via the "Messaging" option of EWA.

4. Email recipients - option 1:
   If your country is setup in the global Daimler Email router for Feedback (please get in contact with your MPC about that) you may simply use the functionality of that email router by setting the property "FeedbackEmail" in the core_cfg.xml to the value: test.gspsupport@daimler.com

5. Email recipients - option 2:
   If you want to setup your own Email routing to different locations you may want to make use of the advanced features of EWA's Feedback. In this case please make a copy of the file feedbackRecipients.xml as emailRecipients.xml and adjust the file core_cfg.xml:
   Set the feedback file reference parameter "RecipientsConfigFile" to the new filename you have chosen like this:
   <PARAMETER name="RecipientsConfigFile">emailRecipients.xml</PARAMETER>.
   Edit the file according to the description of the feedbackRecipients.xml file.

6. Restart your EWA server and give feedback a try.

6.2.1.3 Feedback Channel: Email-or-Fax

6.2.1.3.1 Preconditions

This type of Feedback channel is an automatic switch between Fax and Email depending on the setup of your feedbackRecipients.xml file which works like a decision matrix. Basically the same preconditions as for email and fax (see above) apply here.

Basically you will only want to do this if you have the full responsibility of different fax channels and you are not able to use the global email router or one single fax number for feedback.

If these requirements can be met you may choose  email-or-fax as your Feedback Channel mode.

6.2.1.3.2 Configuration

Steps to be performed on the server side for this configuration are:

1. Go to the [EWA_HOME]\config directory

2. core_cfg.xml: Set the feedback "Modus" parameter to email-or-fax.

3. Ensure that the EWA email service (Parameter "MailService" is up and running and setup correctly. You may test it via the "Messaging" option of EWA.

4. As you want to setup your own Email and Fax routing to different locations you will want to make use of the advanced features of EWA's Feedback. In this case please make a copy of the file feedbackRecipients.xml as recipients.xml and adjust the file core_cfg.xml:
   Set the feedback file reference parameter "RecipientsConfigFile" to the new filename you have chosen like this:
   <PARAMETER name="RecipientsConfigFile">recipients.xml</PARAMETER>.
   Edit the file according to the description of the feedbackRecipients.xml file.

5. Restart your EWA server and give feedback a try.

6.2.1.4 Feedback Channel: XSF-email

6.2.1.4.1 Preconditions

You may use this option only once the XSF project has reached phase 2 (planned for 01-July-2006) and you received an official Go! to use XSF features - please reconfirm with you local MPC.

This type of Feedback channel is an automatic switch between XSF functionality and Email as a fallback depending on the setup of a fixed central decision matrix feedbackTransfer.xml file provided by Daimler (for the selection whether XSF can be used for a specific event type or the email functionality shall be chosen) and the file feedbackRecipients.xml  which in case of the email fallback selects the appropriate email address.

Summary of requirements:

• XSF project has reached phase 2

• Server has permanent Internet access (needed for email)

• Email Service of EWA is correctly configured and working

• Clients have permanent Internet access on ports 80 and 443 (needed to send data via XSF channel).

• Check whether users have access rights to TIPS. Please apply for additional rights for XSF. If access rights do not exist at all, please check with your local MPC if you are already registered with the GSSN.

If all these requirements can be met you may choose  XSF-email as your Feedback Channel mode.

6.2.1.4.2 Configuration

Steps to be performed on the server side for this configuration are:

1. Go to the [EWA_HOME]\config directory

2. core_cfg.xml: Set the feedback "Modus" parameter to XSF-email.

3. Ensure that the EWA email service (Parameter "MailService" is up and running and setup correctly. You may test it via the "Messaging" option of EWA.

4. As you will want to setup your own Email routing to different locations you will want to make use of the advanced features of EWA's Feedback. In this case please make a copy of the file feedbackRecipients.xml as emailRecipients.xml and adjust the file core_cfg.xml:
   Set the feedback file reference parameter "RecipientsConfigFile" to the new filename you have chosen like this::
   <PARAMETER name="RecipientsConfigFile">emailRecipients.xml</PARAMETER>
   Edit the file according to the description of the feedbackRecipients.xml file.



5. Restart your EWA server and give feedback a try.

6.2.1.5 Feedback Channel: XSF-fax

6.2.1.5.1 Preconditions

Like the option XSF-email you may use this option only once the XSF project has reached phase 2 (planned for 01-July-2006) and you received an official Go! to use XSF features - please reconfirm with you local MPC.

This type of Feedback channel is an automatic switch between XSF functionality and Fax as a fallback depending on the setup of a fixed central decision matrix feedbackTransfer.xml file provided by Daimler (used for the selection whether XSF can be used for a specific event type or the fax  functionality shall be chosen) and the file feedbackRecipients.xml  which in case of the fax fallback selects the appropriate fax number.

Summary of requirements:

• XSF project has reached phase 2

• XSF project has not yet reached phase 3 - where the preferred channel will be the direct use of the XSF application.

• Clients do have physical access to a printer.

• Clients have permanent Internet access on ports 80 and 443 (needed to send data via XSF channel).

• Check whether users have access rights to TIPS. Please apply for additional rights for XSF. If access rights do not exist at all, please check with your local MPC if you are already registered with the GSSN.

If all these requirements can be met you may choose  XSF-fax as your Feedback Channel mode.

6.2.1.5.2 Configuration

Steps to be performed on the server side for this configuration are:

1. Go to the [EWA_HOME]\config directory

2. core_cfg.xml: Set the feedback "Modus" parameter to XSF-fax.

3. As you will want to setup your own Fax  routing to different locations you will want to make use of the advanced features of EWA's Feedback. In this case please make a copy of the file feedbackRecipients.xml as faxRecipients.xml and adjust the file core_cfg.xml:
   Set the feedback file reference parameter "RecipientsConfigFile" to the new filename you have chosen like this:
   <PARAMETER name="RecipientsConfigFile">faxRecipients.xml</PARAMETER>.
   Edit the file according to the description of the feedbackRecipients.xml file.

4. Restart your EWA server and give feedback a try.

6.2.1.6 Feedback Channel: xml-post

6.2.1.6.1 Preconditions

This option may only be used once the XSF project has reached phase 3 (planned for 01-April-2007) and you received an official Go! to use XSF features - please reconfirm with you local MPC.

This type of Feedback channel allows full integration of EWA's Feedback module with the XSF project.

Summary of requirements:

• XSF project has reached phase 3

• Clients have permanent Internet access on ports 80 and 443 (needed to send data via XSF channel).

• Check whether users have access rights to TIPS. Please apply for additional rights for XSF. If access rights do not exist at all, please check with your local MPC if you are already registered with the GSSN.

If all these requirements can be met you may choose  xml-post as your Feedback Channel mode.

6.2.1.6.2 Configuration

Steps to be performed on the server side for this configuration are:

1. Go to the [EWA_HOME]\config directory

2. core_cfg.xml: Set the feedback "Modus" parameter to xml-post.

3. Restart your EWA server and give feedback a try.

6.2.1.7 Advanced features of the feedbackRecipients.xml

As described above the standard software setup of EWA provides a simple, but useful feedbackRecipients.xml file which contains a global fax number and a global email address for you to be used unless you need more advanced features. This file will be updated by the software installation processes and thus might override any changes you have made within it.

Therefore it is highly recommended (as described above) that once you start editing it you make a copy of it in the config folder of EWA and update the reference to the file within the core_xfg.xml file's parameter "RecipientsConfigFile". This ensures that your changes will not be destroyed by a software update.

The file initially looks like this:

<?xml version="1.0" encoding="ISO-8859-1"?>
<feedback-recipients xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="feedbackRecipients.xsd">
    <default preferred="fax">
        <email>test.gspsupport@daimler.com</email>
        <fax>+49-711-17-0</fax>
    </default>
</feedback-recipients>

You may want to simply change the default values for the recipients of fax or email by editing the fax or email elements.

But there is more that you can do with this file. The file may serve as an advanced decision matrix on the following attributes:

1. Country:
   This is the top level decision in the decision tree. It represents the country of the workshop of the current user. Country numbers are a Daimler/GSP definition and 3 digits in length (i.e. 200 for Germany). A list of all valid country numbers can be looked up in the file country_codes.xml.
   This feature allows country specific email addresses and/or fax numbers.

2. Workshop:
   The second level in the decision tree is the number of the Workshop the current user belongs to.

3. Feedback Event Category:
   This is the bottom level in the decision tree for the selected category of feedback that shall be provided. Following values are valid:
   A1: Datacard
   C1: Parts Query (EPC)
   C2: Passenger Car Accessories
   D1: TIPS
   D2: Work Documentation (WIS)
   D3: Operation Item (ASRA)
   D4: Damage Codes
   E1: System Problems



To explain in more detail what the flexibility of this file is all about let's do a simple example:

 <?xml version="1.0" encoding="ISO-8859-1"?>
<feedback-recipients xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="feedbackRecipients.xsd">
    <country code="839" preferred= "email">
        <!-- we come here only if country of current user's workshop is Japan -->
        <category code="C1" preferred= "fax">
            <!-- we come here only if the user selected "Parts Query" in Feedback as event category -->
            <email>feedback1@dcx.jp</email>
            <fax>+81 (1) 1234</fax>
        </category>
        <!-- We are in Japan, but no further criteria was matching -->
        <default preferred= "email">
            <email>feedback2@dcx.jp</email>
            <fax>+81 (1) 12345</fax>
        </default>
    </country>
    <!-- we come here if nothing of the above matches -->
    <default preferred= "fax">
        <email>feedback@daimler.com</email>
        <fax>+49 (711) 12345</fax>
    </default>
</feedback-recipients>

Let's go through this example and explain the different options:

Toplevel we define a country element with code "839" which means that this is country "Japan". When Feedback steps down the decision tree it compares the users country code with the one it finds here. Assuming now the user is in Japan. Then feedback remembers that in case of the email-or-fax mode email is the preferred choice via the preferred attribute. The next level of decision was to check for workshop. But this optional level is omitted so feedback steps further down and checks the event category that the user has chosen. Assuming now he has pressed the Feedback button inside the EPC client or has pressed the "Parts Query - EPC" button on the feedback mask, Feedback will match this against the given code "C1" here - and this code really represents the "Parts Query" event category. Feedback now remembers at this point that in case of email-or-fax the preferred Feedback channel will be email. Feedback has resolved the information it needs and will work in the following way:

• Configured Feedback channel is "email" or "XSF-email":
  The given email (feedback1@dcx.jp) will be used and an email will be sent to this address.
• Configured Feedback channel is "fax" or "XSF-fax":
  The given fax number (+81 (1) 1234) will be used and be printed into the fax form.
• Configured Feedback channel is "email-or-fax":
  Feedback uses the information from the last read attribute "preferred" to determine which channel now to use. In our example from above the dynamically selected channel would have been "fax" and the information from the respective element would have been chosen.

Let's continue with this example. Assuming the user is in Japan, but would have chosen a different category - not the "Parts Query". Then feedback would have stepped into the "default" element within this workshop element and would have resolved the information from there.

Assuming the user is one located in Germany then already on the top level of the decision tree Feedback would have stepped into the global "default" section (the one at the bottom of the file) as no other matching workshop could be found. It would have resolved the information from there.

More advanced features:

• The "code" attribute of the XML elements country,  workshop and category allow you to specify multiple codes at once by separating them with a blank.
  Examples: <workshop code="000000 A302X C2020" preferred="fax">
  <country code="200 557" preferred="fax">
  <category code="C1 C2 D1 D2 D3 D4" preferred="email">
• The "email" element allows to specify more then one email address (if needed): just separate them by colons.
  Example: <email>email1@daimler.com,email2@dcx.com</email>

An even more complex configuration that could be used for example multi-country servers of EWA may look like this:

<?xml version="1.0" encoding="ISO-8859-1"?>
<feedback-recipients xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="feedbackRecipients.xsd">

    <country code="200 557">
    <!-- we come here only if country of current user's workshop is Germany or Austria -->

        <workshop id="000000 A030X2">
            <category code="A1 C1" preferred= "fax">
                <email>feedback1@dcx.de</email>
                <fax>+49 (711) 17-12345</fax>
            </category>
            <category code="C2" preferred= "email">
                <email>feedback2@dcx.de</email>
                <fax>+49 (711) 17-123456</fax>
            </category>
            <!-- used for Austria or Germany and workshop either "00000" or "A030X2" but other feedback event category -->
            <default preferred= "fax">
                <email>feedback3@dcx.de</email>
                <fax>+49 (711) 17-12347</fax>
            </default>
        </workshop>

        <!-- used for all other workshops within Germany and Austria -->
        <category code="A1 C1" preferred= "fax">
            <email>feedback4@dcx.de</email>
            <fax>+49 (711) 17-12348</fax>
        </category>

        <default preferred= "fax">
            <email>feedback5@dcx.de</email>
            <fax>+49 (711) 17-12349</fax>
        </default>
    </country>

    <country code="839" preferred= "email">
        <!-- we come here only if country of current user's workshop is Japan -->
        <category code="C1" preferred= "fax">
        <!-- we come here only if the user selected "Parts Query" in Feedback as event category -->
            <email>feedback1@dcx.jp</email>
            <fax>+81 (1) 1234</fax>
        </category>
        <!-- We are in Japan, but no further criteria was matching -->
        <default preferred= "email">
            <email>feedback2@dcx.jp</email>
            <fax>+81 (1) 12345</fax>
        </default>
    </country>

    <!-- we come here if nothing of the above matches, so this is the "catch all" block -->
    <default preferred= "fax">
        <email>feedback@daimler.com</email>
        <fax>+49 (711) 12345</fax>
    </default>
</feedback-recipients>

<?xml version="1.0"?>
<!-- <!DOCTYPE export SYSTEM "wisconfig.dtd"> //-->
<WISCONFIGURATION>
    <SECTION name="imagecache">
        <!-- Size is given in Megabyte -->
        <PARAMETER name="maximumsize">128</PARAMETER>
    </SECTION>
    <SECTION name="pool">
        <SECTION name="co">
            <SECTION name="db">
                <PARAMETER name="driver">oracle.jdbc.driver.OracleDriver</PARAMETER>
                <PARAMETER name="url">jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=53.74.251.22)(PORT=1521)))(CONNECT_DATA=(SID=COL)(SERVER=DEDICATED)))</PARAMETER>
                <PARAMETER name="user">wisnet</PARAMETER>
                <PARAMETER name="password">wisnet</PARAMETER>
            </SECTION>
            <PARAMETER name="size">5</PARAMETER>
            <PARAMETER name="pingstatement">select count(*) from dual</PARAMETER>
        </SECTION>
        <SECTION name="db">
            <PARAMETER name="driver">transbase.jdbc.Driver</PARAMETER>
            <PARAMETER name="url">jdbc:transbase://localhost:2054/wisnet</PARAMETER>
            <PARAMETER name="user">tbadmin</PARAMETER>
            <PARAMETER name="password"></PARAMETER>
            <PARAMETER name="size">5</PARAMETER>
            <PARAMETER name="pingstatement">select count(*) from Config</PARAMETER>
            <PARAMETER name="abondonedtimeout">0</PARAMETER>
        </SECTION>
    </SECTION>

    <SECTION name="client">
        <!-- Java heap size of client in MB, default is 64 MB -->
        <PARAMETER name="heapsize">128</PARAMETER>
        <PARAMETER name="many_docs_limit">250</PARAMETER>
        <PARAMETER name="additionalAnnahmeblattPrint">true</PARAMETER>
        <PARAMETER name="wsmButtonVisible">true</PARAMETER>
        <PARAMETER name="checkINetURL">daimler.com</PARAMETER>
        <PARAMETER name="epcdatacardjnlpurl">/EPC-net/jnlp/datacard_viewer/datacardviewer_{1}.jnlp</PARAMETER>
        <SECTION name="ui">
            <PARAMETER name="fontname">ARIAL Unicode MS>
            <PARAMETER name="fallbackfontname">Arial</PARAMETER>
            <PARAMETER name="3">private</PARAMETER>
                <SECTION name="standard">
                    <PARAMETER name="fontsize">12</PARAMETER>
                </SECTION>
                <SECTION name="c4">
                    <PARAMETER name="fontsize">15</PARAMETER>
                </SECTION>
            </SECTION>
    </SECTION>

    <SECTION name="server">
        <PARAMETER name="codebase">WIS-net/html</PARAMETER>
        <PARAMETER name="clientresources">WIS-net/html/resources/wis-net_Res.jar</PARAMETER>
        <PARAMETER name="clientresources_version_key">wis-net_Res</PARAMETER>
        <PARAMETER name="helpbase">http://localhost:9000/WIS-net/online-help/html</PARAMETER>
        <PARAMETER name="gateway">http://localhost:9000/EWA-net/ewa-net</PARAMETER>
        <PARAMETER name="language_preset">en</PARAMETER>
        <!-- debugLevel is on of ALERT, ERROR, WARNING, INFO or DEBUG -->
        <PARAMETER name="debugLevel">INFO</PARAMETER>
        <PARAMETER name="useMultiline">false</PARAMETER>
        <PARAMETER name="webetmbase">http://localhost:9000/WIS-net</PARAMETER>
        <PARAMETER name="gotisbase">http://gotis.aftersales.mercedes-benz.com/go.asp?where=</PARAMETER>
        <PARAMETER name="wsmbase">http://wsm-mercedes-benz.edgesuite.net/index_para.html</PARAMETER>
        <PARAMETER name="enableWMCSearch">true</PARAMETER>
        <PARAMETER name="enableWMCFiltering">true</PARAMETER>
        <PARAMETER name="collectPerformanceData">true</PARAMETER>
        <PARAMETER name="datacardUrl">http://localhost:9000/EPC-net/datacardapi</PARAMETER>
        <PARAMETER name="datacard_V2_Url">http://localhost:9000/EPC-net/datacardapi_V2</PARAMETER>
        <PARAMETER name="convertLegacyBookmarks">true</PARAMETER>
        <PARAMETER name="fulltextSearchImplementation">LUCENE</PARAMETER>
        <SECTION name="lucene">
            <PARAMETER name="indexDirectoryBasepath">C:/WIS/lucene-indices</PARAMETER>
            <PARAMETER name="containsSearchIsDefault">true</PARAMETER>
            <PARAMETER name="enableTitleSearch">true</PARAMETER>
            <PARAMETER name="morpholigicalSearchInDocument">true</PARAMETER>
            <PARAMETER name="resultSizeLimit">50000</PARAMETER>
            <PARAMETER name="searchInParallel">true</PARAMETER>
            <PARAMETER name="docTitleSearchImplementation">LUCENE</PARAMETER>
        </SECTION>
    </SECTION>
    <SECTION name="casedirect">
        <PARAMETER name="rootdir">C:\temp</PARAMETER>
        <PARAMETER name="webserver">http://53.74.251.21:8080</PARAMETER>
        <PARAMETER name="proxyserver"></PARAMETER>
        <PARAMETER name="proxyport">80</PARAMETER>

        <SECTION name="cookie">
            <SECTION name="1">
                <PARAMETER name="path">/caseonline</PARAMETER>
                <PARAMETER name="name">caseonline_rechte</PARAMETER>
                <PARAMETER name="value">14634</PARAMETER>
                <PARAMETER name="domain">.daimlerchrysler.com</PARAMETER>
            </SECTION>
            <SECTION name="2">
                <PARAMETER name="path">/caseonline</PARAMETER>
                <PARAMETER name="name">caseonline_passwort</PARAMETER>
                <PARAMETER name="value">stws</PARAMETER>
                <PARAMETER name="domain">.daimlerchrysler.com</PARAMETER>
            </SECTION>
            <SECTION name="3">
                <PARAMETER name="path">/caseonline</PARAMETER>
                <PARAMETER name="name">caseonline_login</PARAMETER>
                <PARAMETER name="value">stws</PARAMETER>
                <PARAMETER name="domain">.daimlerchrysler.com</PARAMETER>
            </SECTION>
            <SECTION name="4">
                <PARAMETER name="path">/caseonline</PARAMETER>
                <PARAMETER name="name">caseonline_login</PARAMETER>
                <PARAMETER name="value">stws</PARAMETER>
                <PARAMETER name="domain">u10grz02.grz.mbcase.daimlerchrysler.com:8091</PARAMETER>
            </SECTION>
            <SECTION name="5">
                <PARAMETER name="path">/caseonline</PARAMETER>
                <PARAMETER name="name">caseonline_sprache</PARAMETER>
                <PARAMETER name="value">000</PARAMETER>
                <PARAMETER name="domain">u10grz02.grz.mbcase.daimlerchrysler.com:8091</PARAMETER>
            </SECTION>
        </SECTION>


    </SECTION>

    <SECTION name="caseonline">
        <!-- needed for G.07 configuration -->
        <SECTION name="mappings">
            <SECTION name="fzgart_table">
                <PARAMETER name="1">P</PARAMETER>
                <PARAMETER name="2">P</PARAMETER>
                <PARAMETER name="3">T</PARAMETER>
                <PARAMETER name="4">T</PARAMETER>
                <PARAMETER name="6">N</PARAMETER>
                <PARAMETER name="8">O</PARAMETER>
                <PARAMETER name="9">U</PARAMETER>
            </SECTION>
        </SECTION>
        <SECTION name="importer">
            <PARAMETERR name="fileprefix">co-</PARAMETER>
            <PARAMETER name="filetype">.zip</PARAMETER>
        </SECTION>
    </SECTION>

    <SECTION name="setup">
        <SECTION name="caseonline">
            <PARAMETER name="allowed">true</PARAMETER>
            <!-- true = merge WIS and CO docs, false = only show CO doc even if both exist -->
            <PARAMETER name="merge_wis">true</PARAMETER>
            <SECTION name="sync">
                <PARAMETER name="mainswitch">1</PARAMETER>
            </SECTION>
        </SECTION>
        <SECTION name="casedirect">
            <PARAMETER name="allowed">true</PARAMETER>
        </SECTION>
        <SECTION name="asra">
            <PARAMETER name="defaultJoborderFileName">C:\temp\MBCASE\joborder\joborder.txt</PARAMETER>
        </SECTION>
        <SECTION name="paperformat">
            <PARAMETER name="paperformat_names">A3|A4|Letter|Legal</PARAMETER>
            <PARAMETER name="paperformat_rb">F_SETUP_P_GENERAL_PRINT_SL_A3|F_SETUP_P_GENERAL_PRINT_SL_A4|F_SETUP_P_GENERAL_PRINT_SL_LETTER|F_SETUP_P_GENERAL_PRINT_SL_LEGAL</PARAMETER>
            <PARAMETER name="A3">29.7cm*42cm</PARAMETER>
            <PARAMETER name="A4">21cm*29.7cm</PARAMETER>
            <PARAMETER name="Letter">8.5in*11in</PARAMETER>
            <PARAMETER name="Legal">8.5in*14in</PARAMETER>
        </SECTION>
        <SECTION name="fonts">
            <SECTION name="MODERN">
                <PARAMETER name="PLAIN.W32">Arial</PARAMETER>
                <PARAMETER name="BOLD.W32">Arial Bold</PARAMETER>
                <PARAMETER name="ITALIC.W32">Arial Italic</PARAMETER>
                <PARAMETER name="BOLD-ITALIC.W32">Arial Bold Italic</PARAMETER>

                <PARAMETER name="PLAIN.20.W32">MS Gothic</PARAMETER>
                <PARAMETER name="BOLD.20.W32">MS Gothic</PARAMETER>
                <PARAMETER name="ITALIC.20.W32">MS Gothic</PARAMETER>
                <PARAMETER name="BOLD-ITALIC.20.W32">MS Gothic</PARAMETER>

                <PARAMETER name="PLAIN.28.W32">MS Song</PARAMETER>
                <PARAMETER name="BOLD.28.W32">MS Song</PARAMETER>
                <PARAMETER name="ITALIC.28.W32">MS Song</PARAMETER>
                <PARAMETER name="BOLD-ITALIC.28.W32">MS Song</PARAMETER>

                <PARAMETER name="PLAIN.39.W32">SimSun</PARAMETER>
                <PARAMETER name="BOLD.39.W32">SimSun</PARAMETER>
                <PARAMETER name="ITALIC.39.W32">SimSun</PARAMETER>
                <PARAMETER name="BOLD-ITALIC.39.W32">SimSun</PARAMETER>

                <PARAMETER name="PLAIN.86.W32">Gulim</PARAMETER>
                <PARAMETER name="BOLD.86.W32">Gulim</PARAMETER>
                <PARAMETER name="ITALIC.86.W32">Gulim</PARAMETER>
                <PARAMETER name="BOLD-ITALIC.86.W32">Gulim</PARAMETER>

                <PARAMETER name="PLAIN.87.W32">Arial Unicode MS</PARAMETER>
                <PARAMETER name="BOLD.87.W32">Arial Unicode MS</PARAMETER>
                <PARAMETER name="ITALIC.87.W32">Arial Unicode MS</PARAMETER>
                <PARAMETER name="BOLD-ITALIC.87.W32">Arial Unicode MS</PARAMETER>

                <PARAMETER name="PLAIN.88.W32">Arial Unicode MS</PARAMETER>
                <PARAMETER name="BOLD.88.W32">Arial Unicode MS</PARAMETER>
                <PARAMETER name="ITALIC.88.W32">Arial Unicode MS</PARAMETER>
                <PARAMETER name="BOLD-ITALIC.88.W32">Arial Unicode MS</PARAMETER>
            </SECTION>
            <SECTION name="CLASSIC">
               <PARAMETER name="PLAIN.W32">Arial</PARAMETER>
               <PARAMETER name="BOLD.W32">Arial Bold</PARAMETER>
               <PARAMETER name="ITALIC.W32">Arial Italic</PARAMETER>
               <PARAMETER name="BOLD-ITALIC.W32">Arial Bold Italic</PARAMETER>

               <PARAMETER name="PLAIN.20.W32">MS Gothic</PARAMETER>
               <PARAMETER name="BOLD.20.W32">MS Gothic</PARAMETER>
               <PARAMETER name="ITALIC.20.W32">MS Gothic</PARAMETER>
               <PARAMETER name="BOLD-ITALIC.20.W32">MS Gothic</PARAMETER>

               <PARAMETER name="PLAIN.28.W32">MS Song</PARAMETER>
               <PARAMETER name="BOLD.28.W32">MS Song</PARAMETER>
               <PARAMETER name="ITALIC.28.W32">MS Song</PARAMETER>
               <PARAMETER name="BOLD-ITALIC.28.W32">MS Song</PARAMETER>

               <PARAMETER name="PLAIN.39.W32">SimSun</PARAMETER>
               <PARAMETER name="BOLD.39.W32">SimSun</PARAMETER>
               <PARAMETER name="ITALIC.39.W32">SimSun</PARAMETER>
               <PARAMETER name="BOLD-ITALIC.39.W32">SimSun</PARAMETER>

               <PARAMETER name="PLAIN.86.W32">Gulim</PARAMETER>
               <PARAMETER name="BOLD.86.W32">Gulim</PARAMETER>
               <PARAMETER name="ITALIC.86.W32">Gulim</PARAMETER>
               <PARAMETER name="BOLD-ITALIC.86.W32">Gulim</PARAMETER>

               <PARAMETER name="PLAIN.87.W32">Arial Unicode MS</PARAMETER>
               <PARAMETER name="BOLD.87.W32">Arial Unicode MS</PARAMETER>
               <PARAMETER name="ITALIC.87.W32">Arial Unicode MS</PARAMETER>
               <PARAMETER name="BOLD-ITALIC.87.W32">Arial Unicode MS</PARAMETER>

               <PARAMETER name="PLAIN.88.W32">Arial Unicode MS</PARAMETER>
               <PARAMETER name="BOLD.88.W32">Arial Unicode MS</PARAMETER>
               <PARAMETER name="ITALIC.88.W32">Arial Unicode MS</PARAMETER>
               <PARAMETER name="BOLD-ITALIC.88.W32">Arial Unicode MS</PARAMETER>
            </SECTION>
            <PARAMETER name="HELVETICA.PLAIN.W32">Arial</PARAMETER>
            <PARAMETER name="HELVETICA.BOLD.W32">Arial Bold</PARAMETER>
            <PARAMETER name="HELVETICA.ITALIC.W32">Arial Italic</PARAMETER>
            <PARAMETER name="HELVETICA.BOLD-ITALIC.W32">Arial Bold Italic</PARAMETER>
            <PARAMETER name="TIMES.PLAIN.W32">Times New Roman</PARAMETER>
            <PARAMETER name="TIMES.BOLD.W32">Times New Roman Fett</PARAMETER>
            <PARAMETER name="TIMES.ITALIC.W32">Times New Roman Kursiv</PARAMETER>
            <PARAMETER name="TIMES.BOLD-ITALIC.W32">Times New Roman Fett Kursiv</PARAMETER>
            <PARAMETER name="TIMES_ROMAN.PLAIN.W32">Times New Roman</PARAMETER>
            <PARAMETER name="TIMES_ROMAN.BOLD.W32">Times New Roman Fett</PARAMETER>
            <PARAMETER name="TIMES_ROMAN.ITALIC.W32">Times New Roman Kursiv</PARAMETER>
            <PARAMETER name="TIMES_ROMAN.BOLD-ITALIC.W32">Times New Roman Fett Kursiv</PARAMETER>
            <PARAMETER name="SWISS.PLAIN.W32">Arial</PARAMETER>
            <PARAMETER name="SWISS.BOLD.W32">Arial Bold</PARAMETER>
            <PARAMETER name="SWISS.ITALIC.W32">Arial Italic</PARAMETER>
            <PARAMETER name="SWISS.BOLD-ITALIC.W32">Arial Bold Italic</PARAMETER>
            <PARAMETER name="TYPEWRITE.PLAIN.W32">Courier New</PARAMETER>
            <PARAMETER name="DEFAULT.PLAIN.W32">Courier New</PARAMETER>
            <PARAMETER name="COURIER.PLAIN.W32">Courier New</PARAMETER>
            <PARAMETER name="COURIER.BOLD.W32">Courier New Fett</PARAMETER>
            <PARAMETER name="ARIAL.PLAIN.W32">Arial Narrow</PARAMETER>
            <PARAMETER name="ARIAL.BOLD.W32">Arial Fett</PARAMETER>
            <PARAMETER name="SYMBOLS.PLAIN.W32">Symbols</PARAMETER>
            <PARAMETER name="SYMBOLS.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="GREEK.PLAIN.W32">Greek</PARAMETER>
            <PARAMETER name="GREEK.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="GREEK.BOLD.W32">Greek Bold</PARAMETER>
            <PARAMETER name="GREEK.BOLD.W32.offset">61440</PARAMETER>
            <PARAMETER name="GREEK.ITALIC.W32">Greek Italic</PARAMETER>
            <PARAMETER name="GREEK.ITALIC.W32.offset">61440</PARAMETER>
            <PARAMETER name="GREEK.BOLD-ITALIC.W32">Greek Bold Italic</PARAMETER>
            <PARAMETER name="GREEK.BOLD-ITALIC.W32.offset">61440</PARAMETER>
            <PARAMETER name="MATH~A.PLAIN.W32">Math A</PARAMETER>
            <PARAMETER name="MATH~A.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="MATH~B.PLAIN.W32">Math B</PARAMETER>
            <PARAMETER name="MATH~B.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="MATH~EXT;.PLAIN.W32">Math Ext.</PARAMETER>
            <PARAMETER name="MATH~EXT;.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="LOGOC0.PLAIN.W32">MB Service</PARAMETER>
            <PARAMETER name="LOGOC0.PLAIN.W32.offset">0</PARAMETER>
            <PARAMETER name="LOGO1C0.PLAIN.W32">MB Laenderkennzeichen</PARAMETER>
            <PARAMETER name="LOGO1C0.PLAIN.W32.offset">0</PARAMETER>
            <PARAMETER name="LOGO1C41.PLAIN.W32">MB Diktogramme</PARAMETER>
            <PARAMETER name="LOGO1C41.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="LOGO1C356.PLAIN.W32">MB Fahrzeuge</PARAMETER>
            <PARAMETER name="LOGO1C356.PLAIN.W32.offset">0</PARAMETER>
            <PARAMETER name="LOGO1C357.PLAIN.W32">MB Pruefzeichen</PARAMETER>
            <PARAMETER name="LOGO1C357.PLAIN.W32.offset">0</PARAMETER>
            <PARAMETER name="LOGO1C360.PLAIN.W32">MB Kurzzeichen</PARAMETER>
            <PARAMETER name="LOGO1C360.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="LOGO2C0.PLAIN.W32">AMS New Digital</PARAMETER>
            <PARAMETER name="LOGO3C0.PLAIN.W32">MB Bedienzeichen</PARAMETER>
            <PARAMETER name="LOGO3C0.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="LOGO3C41.PLAIN.W32">MB Bedienzeichen S-Klasse</PARAMETER>
            <PARAMETER name="LOGO3C41.PLAIN.W32.offset">0</PARAMETER>
            <PARAMETER name="LOGO3C356.PLAIN.W32">MB Handkurzzeichen</PARAMETER>
            <PARAMETER name="LOGO3C356.PLAIN.W32.offset">0</PARAMETER>
            <PARAMETER name="LOGO3C357.PLAIN.W32">MB Digitalanzeige S-Klasse</PARAMETER>
            <PARAMETER name="LOGO3C357.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="LOGO3C360.PLAIN.W32">MB Schweisszeichen</PARAMETER>
            <PARAMETER name="LOGO3C360.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="LOGO3C361.PLAIN.W32">MB Bed. Zeichen W210</PARAMETER>
            <PARAMETER name="LOGO3C361.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="FONT3C0.PLAIN.W32">MB Fahrzeuge II</PARAMETER>
            <PARAMETER name="FONT3C0.PLAIN.W32.offset">61440</PARAMETER>
            <PARAMETER name="FONT3C41.PLAIN.W32">MBFahrzeuge III</PARAMETER>
            <PARAMETER name="FONT3C41.PLAIN.W32.offset">0</PARAMETER>
        </SECTION>
        <SECTION name="image">
            <SECTION name="TIFF">
                <PARAMETER name="matcher">com.daimler.wis.common.image.TIFFMatcher</PARAMETER>
                <PARAMETER name="decoder">com.daimler.wis.common.image.TIFFDecoder</PARAMETER>
            </SECTION>
            <SECTION name="GIF">
                <PARAMETER name="matcher">com.daimler.wis.common.image.GIFMatcher</PARAMETER>
                <PARAMETER name="decoder">com.daimler.wis.common.image.GIFDecoder</PARAMETER>
            </SECTION>
            <SECTION name="JPEG">
                <PARAMETER name="matcher">com.daimler.wis.common.image.JPEGMatcher</PARAMETER>
                <PARAMETER name="decoder">com.daimler.wis.common.image.JPEGDecoder</PARAMETER>
            </SECTION>
            <SECTION name="DTW">
                <PARAMETER name="matcher">com.daimler.wis.common.image.dtwdecoder.DTWMatcher</PARAMETER>
                <PARAMETER name="decoder">com.daimler.wis.common.image.dtwdecoder.DTWDecoder</PARAMETER>
            </SECTION>
        </SECTION>
        <SECTION name="markers">
            <PARAMETER name="anzieh.t">SIDS_ANZIEHMOMENTE</PARAMETER>
            <PARAMETER name="as.t">SIDS_AS_TABELLE</PARAMETER>
            <PARAMETER name="basdat">SIDS_BASISDATEN</PARAMETER>
            <PARAMETER name="bilder.t">SIDS_FIGURE</PARAMETER>
            <PARAMETER name="diag.t">SIDS_DIAGNOSE</PARAMETER>
            <PARAMETER name="fig">SIDS_FIGURE</PARAMETER>
            <PARAMETER name="aender.t">SIDS_AENDERUNGSHINWEISE</PARAMETER>
            <PARAMETER name="fuell.t">SIDS_FUELLMENGEN</PARAMETER>
            <PARAMETER name="hndwkz.t">SIDS_HDLSUEBL_WERKZEUGE</PARAMETER>
        </SECTION>
        <SECTION name="aggtypabk2bmart">
            <PARAMETER name="A">A</PARAMETER>
            <PARAMETER name="AG">G</PARAMETER>
            <PARAMETER name="MG">G</PARAMETER>
            <PARAMETER name="H1">HA</PARAMETER>
            <PARAMETER name="H2">HA</PARAMETER>
            <PARAMETER name="LG">L</PARAMETER>
            <PARAMETER name="P">P</PARAMETER>
            <PARAMETER name="V1">VA</PARAMETER>
            <PARAMETER name="V2">VA</PARAMETER>
            <PARAMETER name="VG">VG</PARAMETER>
            <PARAMETER name="T">T</PARAMETER>
            <PARAMETER name="M">M</PARAMETER>
            <PARAMETER name="L">L</PARAMETER>
            <PARAMETER name="G">G</PARAMETER>
            <PARAMETER name="HA">HA</PARAMETER>
            <PARAMETER name="VA">VA</PARAMETER>
        </SECTION>
    </SECTION>

    <SECTION name="services">
        <!--  Licence string for application "Damage Code Standalone"
             (Position 63 to 72 will be used for country code which should
             be 0, meaning international)
         -->
        <PARAMETER name="damageCodeLicence">01111110001000000111100000000011111111111111111111111111111111100000000000011110</PARAMETER>
    </SECTION>
</WISCONFIGURATION>

<config>
<param name="gateway">EWA-net/ewa-net</param>
<param name="applicationMode">HPSERVICE</param>
<param name="clientMainClass">com.snapon.sbs.epc.client.view.impl.MBEPCApplication</param>
<param name="dbDriver">transbase.jdbc.Driver</param>
<param name="dbUser">tbuser</param>
<param name="SPECIAL_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/SPECIALFILES</param>
<param name="COMM_URL">pooling:30:null:10000:null:5:null:null:null:null:null:null:jdbc:transbase://localhost:2034/COMM</param>
<param name="ALLTEXT_URL">pooling:70:null:10000:null:2:true:null:null:null:null:null:jdbc:transbase://localhost:2034/ALLTEXT</param>
<param name="DCEX_DCEX_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/DCEX_DCEX</param>
<param name="MBJA_DCJA_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBJA_DCJA</param>
<param name="MBIE_DCIE_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBIE_DCIE</param>
<param name="MBLA_DCLA_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBLA_DCLA</param>
<param name="MBOE_DCBUS_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBOE_DCBUS</param>
<param name="MBOE_DCCAR_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBOE_DCCAR</param>
<param name="MBOE_DCGWGN_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBOE_DCGWGN</param>
<param name="MBOE_DCTRAC_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBOE_DCTRAC</param>
<param name="MBOE_DCTRAN_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBOE_DCTRAN</param>
<param name="MBOE_DCTRK_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBOE_DCTRK</param>
<param name="MBOE_DCUMOG_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBOE_DCUMOG</param>
<param name="MBNA_DCNA_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBNA_DCNA</param>
<param name="MBSA_DCSA_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBSA_DCSA</param>
<param name="MBSM_DCSM_URL">pooling:30:null:10000:null:2:null:null:null:null:null:null:jdbc:transbase://localhost:2034/MBSM_DCSM</param>
<param name="DAG_DCIAG_ARC_URL">pooling:30:null:10000:null:2:true:null:null:null:null:null:jdbc:transbase://localhost:2034/DAG_DCIAG_ARC</param>
<param name="DAG_DCIAG_URL">pooling:30:null:10000:null:2:true:null:null:null:null:null:jdbc:transbase://localhost:2034/DAG_DCIAG</param>
<param name="DAG_DCPC_URL">pooling:30:null:10000:null:2:true:null:null:null:null:null:jdbc:transbase://localhost:2034/DAG_DCPC</param>
<param name="DAG_DCCV_URL">pooling:30:null:10000:null:2:true:null:null:null:null:null:jdbc:transbase://localhost:2034/DAG_DCCV</param>
<param name="BM_IMAGES_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/BM_IMAGES</param>
<param name="SA_IMAGES_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/SA_IMAGES</param>
<param name="BM_IMAGES_ARC_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/BM_IMAGES_ARC</param>
<param name="SA_IMAGES_ARC_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/SA_IMAGES_ARC</param>\
<param name="BM_IMAGES_WS_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/PNG_IMAGES</param>
<param name="SA_IMAGES_WS_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/PNG_IMAGES</param>
<param name="BM_IMAGES_WS_ARC_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/PNG_IMAGES_ARC</param>
<param name="SA_IMAGES_WS_ARC_H_URL">pooling:40:null:10000:20:20:true:null:null:null:null:null:jdbc:transbase://localhost:2034/PNG_IMAGES_ARC</param>
<param name="BM_IMAGES_WS_URL">BM_IMAGES_WS_H_URL,BM_IMAGES_WS_ARC_H_URL</param>
<param name="SA_IMAGES_WS_URL">SA_IMAGES_WS_H_URL,SA_IMAGES_WS_ARC_H_URL</param>
<param name="BM_IMAGES_URL">BM_IMAGES_H_URL,BM_IMAGES_ARC_H_URL</param>
<param name="SA_IMAGES_URL">SA_IMAGES_H_URL,SA_IMAGES_ARC_H_URL</param><param name="MBNOART_IMAGES_URL">COMMONI_H_URL</param>
<param name="helpPath">/EPC-net/online-help/html</param>
<param name="wnewPath">/EPC-net/whatsnew/html</param>
<param name="tipofthedaycfgPath">/webapps/EPC-net/whatsnew/html</param>
<param name="logoPath">/images/logo/background_main.jpg</param>
<param name="showLogoImage">true</param>
<param name="dmsPartNoDelims">' ','-'</param>
<param name="imageop1">ScaleSmooth</param>
<param name="defaultDatabaseLocale">en</param>
<param name="defaultLocale">G</param>
<param name="defaultLocaleGUI">G</param>
<param name="hasSA">true</param>
<param name="availableClasses">1,2,3,4,5,6,7,F,M,T,A,S</param>
<param name="availableClasses_NA">1,2</param>
<param name="availableClasses_JA">1,2,3</param>
<param name="availableClasses_LA">3,4,5,6</param>
<param name="availableClasses_SA">1,2,3,4,5,6,7</param>
<param name="availableClasses_SMART">F</param>
<param name="shoplistVersion">1.1</param>
<param name="XFR_Delete_Exit">true</param>
<param name="LookAndFeel">Automatic</param>
<param name="enhancedFilteringClasses">1,2,3</param>
<param name="SupplementaryTextIn_SL_XFR_File">true</param>
<param name="sendAllModelsForDK">false</param>
<param name="AutoAppendMotorCode">true</param>
<param name="AutoAppendMotorCodeClass">1</param>
<param name="MinPartSearchNameLength">3</param>
<param name="transmitDatacard">true</param>
<param name="compressDatacardResponse">false</param>
<!-- valid values for remanufacturedAggTypes M,GA,GM,LG,VA,HA,VG,P,FH -<param name="remanufacturedAggTypes">M,GA,GM</param>
<param name="remanufacturedAggClasses">1,2,3,F</param>
<param name="CollapseReplacementChain">true</param>
<param name="VPDIdentClasses">1,2,3,4,5,6,7,F</param>
<param name="XFRServiceAndFile">false</param>
<param name="IncludeAggregateBMforCodeDesc">true</param>
<param name="CodeDescriptionEldasClasses">1,2</param>
<param name="defaultThumbnails">true</param>
<param name="clearClientDiskCacheWithDbUpdate">false</param>
<!-- valid values for clientImageThreads between 1 and 3-->
<param name="clientImageThreads">2</param>
<!-- valid values for minClientHeapSize minimum 128 and higher values in 64 steps-->
<param name="minClientHeapSize">128</param>
<!-- valid values for diasableAggIdxFallbackClasses 1,2,3,4,5,6,7,F -->
<param name="disableAggIdxFallbackClasses">3,4</param>
<param name="wildcardSearchHitLimit">5000</param>
<param name="CKDFilterEnabledClasses">1</param>
<param name="AutoCatSelect">true</param>
<param name="accessoryCodePattern">TZ*</param>
</config>

7 Advanced Configuration

7.1 Switching EWA to default HTTP Port 80

The standard installation will make EWA run on the specific port 9000. This is to avoid conflicts with existing installations of an HTTP server listening on port 80 (i.e. Windows 2000 Server installations with IIS running for administrative tasks). If you make use of an upfront web server as described in the section about setting up EWA for clustering you will already find EWA running on the port 80.

So apart from the steps described in the following sections to make the EWA Application Server listen on port 80, you might also want to see the clustering documentation and setup a WebServer in front of the application server.

However, to allow you to switch your application server installation to use the HTTP default port 80, following instructions might be helpful for you:

1. Edit the J2EE Server configuration

   For the "local" environment this is:
   [EWA_HOME]\server\conf\server.xml
   Find the section and edit the line:


   <!--
       Define a non-SSL HTTP/1.1 Connector on port 9000
   -->
   <Connector port="80"
              protocol="HTTP/1.1"
              secure="false"
              maxHttpHeaderSize="8192"
              acceptCount="300"
              maxThreads="200"
              minSpareThreads="25"
              maxSpareThreads="75"
              enableLookups="false"
              redirectPort="8443"
              connectionTimeout="60000"
              disableUploadTimeout="false" />


   Replace the current value for "port" (i.e. "9000") with the new value "80".

2. Edit the central config file of EWA:

   [EWA_HOME]\config\core_cfg.xml

   Edit the value

   [...]
   <PARAMETER name="httpPort">80</PARAMETER>
   [...]

   Replace the value with "80".

3. Edit the EPC configuration file. Adjust the property for the datacard access URL:

   [EWA_HOME]\config\epc_cfg.xml

   Find the section and edit the line:

   [...]
   <param name="datacardapi">http://localhost:80/EPC-net/datacardapi</param>
   [...]

   Replace the value with "80"

4. Restart the EWA server
5. If you make use of EWANAPI please assure that all clients refer to the corrected address now. As EWANAPI has to connect to the server, it needs the correct URL, including a correct port number for the URL.
   Find and edit the file:

   EWANAPI.INI

   and edit the entry

   [...]
   [HTTP-Config]
   [...]
   Port=80


   Replace the value with "80".

7.2 Logging

7.2.1 EWA system log

EWA makes use of the Log4J logging API, a de-facto standard in the Java world. Its configuration will be performed within the file

[EWA_HOME]\config\log4_config.xml

You will find different so called "appenders" within this file to be configured. Each of them has properties that you can use to fine tune the logging mechanisms:

There are 2 basically different files that log different things:

1. A developer log file that contains typically the most information.
   This information will be generated by two appenders: one writing HTML formatted output (name of the appender is "HTML"), the other one writing plain ASCII (name of this appender is "STANDARD_FILE")
2. A DC compliant monitor file reporting monitoring information.
   This information will be generated by an appender named "DCMONFILE". It creates a file in the format specified by Daimler

7.2.1.1 File names and location of logfiles

You can modify the filenames into which the appenders write. The filenames are being defined by the parameter "File" for each appender. You are free in choosing a filename you like. As long as you specifiy simply a filename without directory information, this file will be created in the folder [EWA_HOME]\logs.

As soon as you provide an absolute path, this will be chosen.

Example:

<param name="File" value="C:\test__log.txt" />

will write the output directly into the root directory of drive C:

Note:
Please be aware that changing the directory in which EWA will log might have unwanted side effects. One of them is that neither Dr.EWA nor the administration pages will be able to find those log files then. EWA's tools expect that logfiles will be written into [EWA_HOME]\logs.

7.2.1.2 Log level

The log level for the log appenders can be set individually for the both appenders writing the debugging log information. For each of these appenders you will find the entry

<param name="Threshold" value="WARN" />

There are different log levels available. The higher you set the level (from DEBUG up to FATAL) the less narrative the log file will be, but you will then only see the more critical reports :

7.2.1.3 Rolling File Adapter

To avoid big log files, we use the Log4JImprovedRollingFileAppender as appender. This appender will create numbered files with a specific file size. It has additional parameters to define the file size and the maximum number of files:

7.2.2 Application Server logging

EWA will be run inside and under the control of the application server. During runtime of the application server all of its components perform some kind of communication between each other and fulfill different tasks. Those are not under the control of EWA and will be monitored within separate, application server specific files.

If something goes wrong – i.e. an exception occurs (some unexpected behavior) – It will be logged into an application server (often also referred to as "container") own log file. The details of the logging information depends upon the configured log level (or debug level).

Note:
These logfiles will mainly contain information in the startup phase of the components. Typically during runtime you will find the most relevant information within the logfiles that EWA writes on its own (see above).

7.2.3 Client Side Logging

Besides logging on server side, logging can also be influenced on client side. This can mainly be used for troubleshooting of client application problems.

Logging is per default enabled on information level but can be configured during runtime to a different level or format. Logging configuration is set by a file on the clients machine. The format of the file is described below and will be searched in the following order:

1. %USERPROFILE%\logging.properties

2. C:\logging.properties

3. (default configuration)

The client application is watching for a configuration change for every 10 seconds and refreshes the logging configuration if the file has been altered.

An example logging configuration on client side could look like this:

# Handler to which the log output is directed to
handlers=java.util.logging.ConsoleHandler

# Default global logging level.
# This specifies which kinds of events are logged across
# all loggers. For any given facility this global level
# can be overriden by a facility specific level
# Note that the ConsoleHandler also has a separate level
# setting to limit messages printed to the console.
.level=INFO

# For example, set the com.hp logger to only log SEVERE messages:
com.hp.level=SEVERE

Logging levels can be specified for different application component structures and set to different levels. Levels can be...

• SEVERE (highest value)
• WARNING
• INFO
• CONFIG
• FINE
• FINER
• FINEST (lowest value)

For further configuration options, please take a look to the Java Logging Overview,

7.3 Security

7.3.1 Secure Socket Layer (SSL, HTTPS) Support – Optional

Support for SSL is optional. Installing SSL requires general SSL knowledge. Before installing SSL please make sure the server is running correctly. Only after you tested the system completely and assured it is running fine, start installing SSL. After completing the SSL installation, you can use the system like before. You can even use your old bookmark. EWA will automatically switch to SSL during logon. You can recognize this by finding the yellow lock icon in the Internet Explorer status bar.

For protection against unsolicited access please find more information here.

During the SSL installation, please stop the EWA server and restart it only after completing the SSL setup. If you do not do this you might get confused as files might be locked or the server will not react in the way you expected it.

Get a certificate for the computer

Before using SSL you have to get an official SSL certificate for the server you want to run the EWA application server on. This certificate will be issued to the host name and IP address. It can either be a "self signed" certificate (for first simple tests this might be sufficient) or an official certificate signed by a known certificate authority like Verisign or Thawte.

Note:
A self signed certificate should only be used for testing. EWANAPI doesn’t support self signed certificates. Also the Internet Explorer will show a warning, that the certificate issuer is not trusted.

General approach for getting a certificate (find more details about that later on):

1. Use an empty key store like the one provided on the EWA media (or create a new empty key store for your certificate)
   Key stores are a Java mechanism for storing the private/public key pairs that finally make up your certificate. You can think of those files like a treasure box which is locked by a password that only you and of course your application server know.
2. Generate a public/private key pair in that key store. This key pair will again be protected by a password.
   Ensure you use the same password for both your key pair and your key store itself!
   If you miss this, you will not be able to run the Application Server in SSL mode as it then cannot access your certficate.
3. Request a certificate from a certificate authority (CA) for that key.
4. Import the certificate you have received from the CA. Import the chain certificate (the authentication certificate of the CA).

For getting an official and trusted certificate please refer to the certificate authorities and your internal processes for doing so.

Prepare the key store

Find the prepared and empty key store on the delivery media (you may also create your own if you have good experience). We will later refer to the key store in the server's file system at:

File: [EWA_HOME]\certificates\ewanet.jks

So, copy the key store file from the delivery media at

[DVD-DRIVE]:\ewa\central\config\ewanet.jks

to

[EWA_HOME]\certificates\ewanet.jks

(create the directory "certificates" if needed).
Please ensure to remove any write protection on the file after you copied it from the delivery media..

The file is a Java key store file and we will make use of it in the next steps.

To be able to work with the system you could simply make use of Oracle's "keytool" which is part of a public Java Development Kit. But we recommend to make use of the "KeyStore Explorer" (http://keystore-explorer.sourceforge.net). This document assumes you have this software installed.

Assuming you have installed the "KeyStore Explorer", you will now be able to open the key store at

EWA_HOME\certificates\ewanet.jks

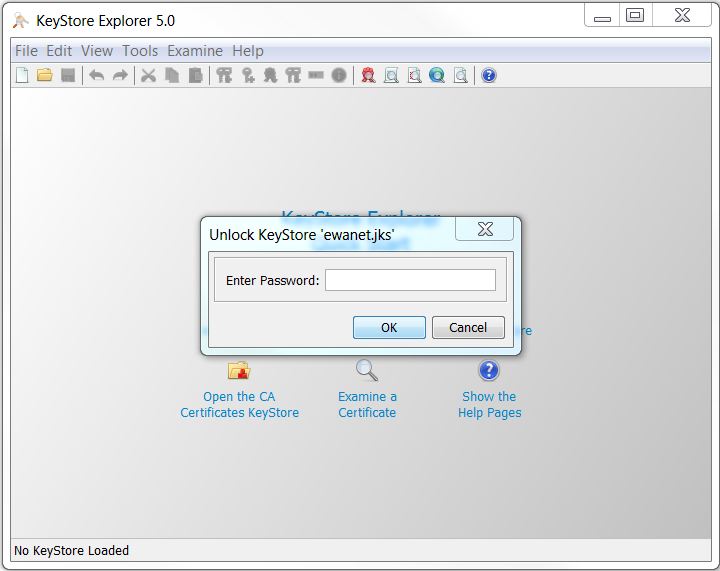

Double-click the file and a GUI will open, asking you for the key store's password.

1. You will be asked for a password. Enter "changeit" as this is the default when you use the key store from the delivery media
2. We recommend you change the password now and save the key store again (use the menu "Tools / Set Password" to do this and then click on "File / Save").
3. Create a public/private key pair (use the menu "Tools / Generate Key Pair"). This will make up your certificate later).



   Use RSA, 2048 Bits and the default settings for the rest.

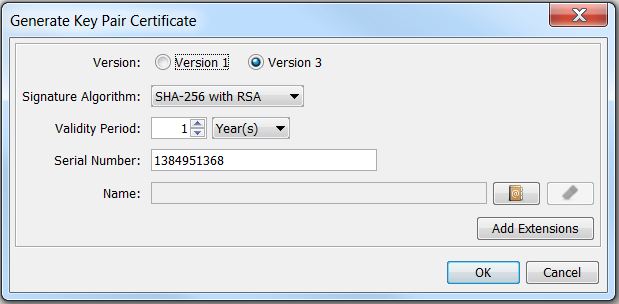

   When asked for information please set at least a meaningful duration (i.e. 365 days for one year).



   Make use of the default algorithm (SHA-256 with RSA).
   Leave the generated Serial Number and the preselected Version 3.
   If you know what to do, you can add some additional information by clicking Add Extensions.



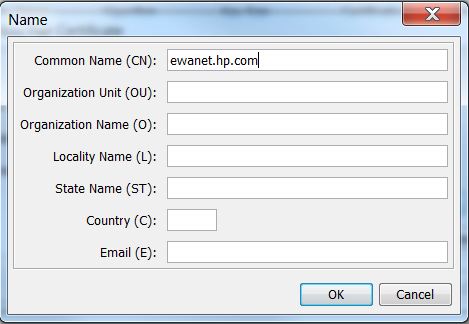

   Click Edit Name and add the correct data (Common Name (CN), Email,...). Make sure to enter the Common Name attribute with exactly the DNS name that your client later will refer to when trying to connect your EWA server.

   Note:
   It is important that for the "Common Name" you specify exactly the server name that your clients of EWA will make use of in the future. Typically it is recommended to use the fully qualified DNS name of the EWA server.

4. You will then be asked for an alias. This will not be used by the server, it is just an intuitive name for your reference, as you could i.e. add several different certificates within the given key store. You may just accept the suggestion of the KeyStore Explorer application.



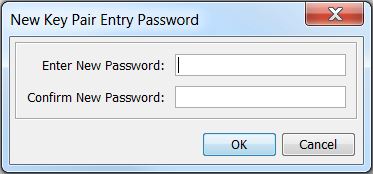

5. Enter a password for the keypair now.
   Note:
   It is important that you now use exactly the same password as for the key store itself. If you do this wrong, your EWA server will definitely not run with SSL switched on as it will not be able to access your certificate. So make use of the password that you have set for the key store itself again.



6. Now you must save your keystore again.
   Congratulations! You successfully created a "self-signed" certificate.
   It is not yet trusted, but to test your system you could for now skip the next few steps of this documentation and try to configure your server.

   Note:
   DO NOT DELETE THE KEYSTORE NOW. It will be used by the server and you will also need it to re-import the real certificate from a trusted authority like VeriSign. If you delete the keystore and then get your official certificate back, it will be worthless. You will not be able to recreate a keystore and keypair matching this certficate.

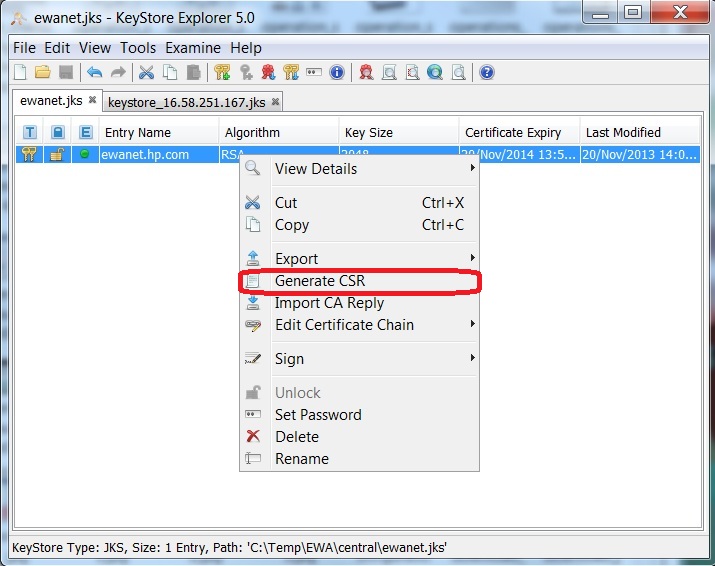

7. To get a real certificate, please first create a Certificate Signing Request (CSR) now



   Save this to the disk and get in contact with i.e. VeriSign or Thawte where you will have to upload this information.
   They will return 2 certificates after a few days - and after you paid it, of course :)
   - a so called "chain certificate"
   - your personal "trusted" and official certificate that now will be accepted by all browsers and the EWANAPI executable once imported into your key store.
   Both have to be imported via "Import CA Reply" in the context menu of your certificate in the key store (see screenshot above) - starting always with the chain certificate!
   Please follow the instructions of the certificate authority where you received the certificate files from. Should you have any problems importing the certificates, please contact the certificate authority, which basically tells you that you might have to import and export the files through the InternetExplorer certificate store.
8. Do not forget to save your key store now. Then close the KeyStore Explorer application.
9. Congratulations! Your key store is complete, but to use it you now have to activate SSL in the server - something you will have to do after each update of the software.

Activate SSL within the application server

File: [EWA_HOME]\server\conf\server.xml

<!--
        Define a non-SSL HTTP/1.1 Connector on port 9000
-->
<Connector port="9000"
        protocol="HTTP/1.1"
        secure="false"
        maxHttpHeaderSize="8192"
        acceptCount="300"
        maxThreads="200"
        enableLookups="false"
        redirectPort="8443"
        connectionTimeout="60000"
        disableUploadTimeout="false" />


<!--
    Define a SSL HTTP/1.1 Connector on port 8443
<Connector port="8443"
           protocol="org.apache.coyote.http11.Http11NioProtocol"
           maxHttpHeaderSize="8192"
           acceptCount="300"
           maxThreads="200"
           enableLookups="false"
           scheme="https"
           secure="true"
           clientAuth="false"
           SSLEnabled="true"
           connectionTimeout="60000"
           disableUploadTimeout="false"
           keystoreFile="[EWA_HOME]/certificates/ewanet.jks"
           keystorePass="changeit"
           sslProtocol="TLS" />
-->

Note:
Ensure that your replace the placeholder string "[EWA_HOME]" by your real installation directory, i.e. "C:/EWA_net" wherever it appeared in the samples above.

Now you successfully activated the SSL mode of the application server, but EWA is not yet aware of this setting.

Activate SSL inside of the EWA application

After configuring your application server to make use of SSL you finally have to tell the EWA application itself about your intention to use SSL and on which ports your application server listens. This is needed as there is no common API in the different application servers to ask them for this information.

Note:
In opposite to early versions of EWA is not necessary anymore to perform this step after each software update.

Edit the configuration file:

File: [EWA_HOME]\config\core_cfg.xml

Activate SSL inside of EWA. Go to the AccessGateway -> ApplicationSettings section at the very bottom of that file. There set the property "sslEnabled" from false to true.

<SECTION name="AccessGateway">
        <SECTION name="ApplicationSettings">
        <!-- SSL within EWA - do not forget to configure your server accordingly -->
        <PARAMETER name="sslEnabled">true</PARAMETER>
        <!-- SSL for client - server communication - should be configured only together with sslEnabled -->
        <PARAMETER name="sslForClientsEnabled">false</PARAMETER>
        <!-- If using an external SSL module, the external client-URLs will be generated with https instead of http.
                        Ensure that the parameters sslEnabled and sslForClientsEnabled are not set to true. -->
        <PARAMETER name="useExternalSSLModule">false</PARAMETER>
        <PARAMETER name="httpPort">9000</PARAMETER>
        <PARAMETER name="httpsPort">8443</PARAMETER>

        </SECTION>

7.3.2 Protection against unsolicited access

The system should be protected against unsolicited access. In general all URLs that should not be accessed from outside should be blocked. For the application itself the so called AccessGateway will be a single point of entry. No direct access to business logic is allowed and possible. This prevents potential security issues. There are also URLs that should be only accessible for system administrator (e.g. run time statistics).

The security constraint feature of the web application settings (web.xml) will be used to reach this goal.  Only few resources should be accessible from outside. Unfortunately it isn’t possible to define a positive list (which URLs are allowed) but only a negative list.

The protection level are:

• Public:               External access allowed
• Protected:          No external access allowed.
• Admin:              These URLs are only allowed to access using a system administrator role.

EWA-net URLs

¹Internal info: these URLs have already been protected by Apache Struts.

EPC-net URLs

WIS-net URLs

Configure web.xml

Change the settings of all installed web applications. The settings file is

EWA-net:          [EWAHOME]\webapps\EWA-net\WEB-INF\web.xml
EPC-net:           [EWAHOME]\webapps\EWA-net\WEB-INF\web.xml
WIS-net:            [EWAHOME]\webapps\EWA-net\WEB-INF\web.xml

Add to the web.xml:

<security-constraint>
    <web-resource-collection>
        <web-resource-name>Blocked URLs</web-resource-name>
        <description>Block all traffic to unwanted URLs.</description>
        <url-pattern>/jsp/*</url-pattern>
        <url-pattern>/someotherurl</url-pattern>
    </web-resource-collection>
    <auth-constraint>
        <description>This group doesn't contain user. So no user is allowed to
            access such URLs</description>
        <role-name>ewanet_protected</role-name>
    </auth-constraint>
</security-constraint>

<security-constraint>
    <web-resource-collection>
        <web-resource-name>Admin URLs</web-resource-name>
        <description> URLs accessible for administrators only</description>
        <url-pattern>/statistic</url-pattern>
        <url-pattern>/someotherurl</url-pattern>
    </web-resource-collection>
    <auth-constraint>
        <description>Only admin user </description>
        <role-name>ewanet_admin</role-name>
    </auth-constraint>
</security-constraint>

<login-config>
    <auth-method>BASIC</auth-method>
</login-config>

<security-role>
    <role-name>ewanet_protected</role-name>
    <role-name>ewanet_admin</role-name>
</security-role>

7.4 User Management Configuration

File: [EWA_ HOME]\config\core_cfg.xml
File: [EWA_ HOME]\config\um_cfg.xml
File: [EWA_ HOME]\config\um_batch_cfg.xml

The User Management configuration can be changed by editing the files core_cfg.xml and um_cfg.xml. Additionally the file um_batch_cfg.xml is used for installations which support EWANAPI. It is required to configure the login method for EWANAPI authentication calls.

EWANAPI uses the values of "um_batch_cfg.xml" where as the standard login masks use "um_cfg.xml" as configuration. So the best way to configure EWANAPI access to setup a correct and tested "um_cfg.xml" and then after successful tests make a copy of it and rename it "um_batch_cfg.xml".

7.4.1 HP User Management

HP User Management is the default User Management. It is being switched on automatically at the time when EWA local is installed.

Edit: [EWA_ HOME]\config\um_cfg.xml

Set <PARAMETER name="userManagementService">HPUserManagement</PARAMETER>
Set <PARAMETER name="authenticationMode">Own</PARAMETER>

EWA supports different authentication modes for the HP User Management:

• Own
  Authentication will be performed against the EWA built in user management database only.
• LDAP
  Authentication will be performed against an LDAP capable User directory (i.e. MS Active Directory). Nevertheless the users will have to be setup within the EWA built in user management database for authorization.
• Corporate Directory
  Daimler internal authentication directory.

7.4.2 LDAP

LDAP authentication offers the possibility to authenticate users using a generic LDAP server. Also Microsoft Active Directory can be used as authentication interface using LDAP. LDAP authentication is only possible if HP User Management is switched on.

The LDAP authentication interface offers four possibilities for authentication of users:

1. LDAP Authentication (Most simple mode)
   The entered user name, domain and password are used for authentication by trying to bind against a LDAP server. If the bind is successful, it is assumed that the password was correct.
2. LDAP Attribute comparism (Fetch Mode)
   The LDAP server is bound using a fixed account. An LDAP record is fetched using the userid and domain name of the entered credentials. One attribute from the record is then compared to the entered password of the user.
3. LDAP Search and Result Attribute comparism (Search Mode)
   The LDAP server is bound using a fixed account. A LDAP record is searched in the directory using a specific scope with a filter which is generated using the credentials of the user. One attribute from the LDAP search result is compared with the password of the user.
4. LDAP Entry Search and User Authentication
   The LDAP directory is searched for a user name like in search mode, the resulting matched user is authenticated using the provided password.

7.4.2.1 General Setup of LDAP

To enable LDAP authentication the following configuration needs to be adopted:

Edit: files [EWA_ HOME]\config\um_cfg.xml / [EWA_ HOME]\config\um_batch_cfg.xml

Set <PARAMETER name="userManagementService">HPUserManagement</PARAMETER>
Set <PARAMETER name="authenticationMode">LDAP</PARAMETER>

Modify the section "LDAP" to match your LDAP environment.

No matter which type of authentication you want to make use of, there is one common thing for all of them:

Specify your LDAP Server and Port:
<PARAMETER name="ldapHost">your.ldap.server</PARAMETER>
<PARAMETER name="ldapPort">389</PARAMETER>
Port 389 is an LDAP port of a typical "standard" environment.

You can also specify a fallback LDAP Server and Port. In case the first LDAP server is not available this fallback server will be used.
If no fallback server exists, leave the following parameters empty. Otherwise configure them as follows:
<PARAMETER name="ldapFallbackHost">your.ldap.fallback.server</PARAMETER>
<PARAMETER name="ldapFallbackPort">389</PARAMETER>

See the sections below for the specific settings of each individual authentication method.

7.4.2.2 Using LDAP Authentication (Simple mode)

Using this simple mode basically performs a "bind" against the given LDAP server. If a "bind" is succesful, the user will be authenticated successfully, if not the user will not be authenticated. Typically this will not work in large and complex setups where users are distributed in LDAP over several nodes which cannot be expressed by one single DN pattern.

To authenticate the user against LDAP by issuing a direct bind with the user credentials, the following settings in sections LDAP need to be adopted:

1. Specify the bind DN to use for authentication:
   <PARAMETER name="bindDN">[your bind DN]</PARAMETER>
   DN with which the LDAP-Connection is established. Placeholders in the DN - to make the DN more flexible - are:
   {userid}
   {password}
   {domain}  Note: This value only exists if you setup userids in the form "<domain>\<userid>"
   They will be replaced from the provided login information of the user. Before replacement, the characters "*()" of the entered user credentials will be escaped.
   Example for a bindDN parameter, which expects users in the subtree (com - company - {domain} - Users):
   CN={userid},CN=Users,DC={domain},DC=company,DC=com
2. Specify the binding password for the connection:
   Placeholders
   {userid}
   {password}
   {domain}
   will be replaced by the submitted login information. The characters "*()" of the user credentials will be NOT escaped! To authenticate against LDAP, use the following setting:
   <PARAMETER name="bindPasswd">{password}</PARAMETER>
3. Specify the mode for authentication:
   <PARAMETER name="authMode">authenticate</PARAMETER>

All other options in the section LDAP are not relevant in this case.

7.4.2.3 Using LDAP Fetch Mode

If you do not want to make use of LDAP user passwords for your EWA users, you may want to sign a specific attribute within the User object in LDAP as pseudo password. In this case we follow the approach:

1. Bind to the LDAP server with one explicit "bind user" or even anonymous.
2. Go down the hierarchy following a provided, flexible DN
3. Resolve the attribute of the user object that was found and compare the password against this attribute

To process authentication using a LDAP fetch the following settings need to be performed within the configuration:

1. Specify the bind DN to use for authentication:
   <PARAMETER name="bindDN">[your bind DN]</PARAMETER>
   DN with which the LDAP-Connection is established with an explicit "bind user". These values will be fixed as they are needed for binding and do not make use of the provided login information during the.authentication process. You might even be able to bind anonymously. In this case you can leave the "bind" fields empty.
   Example:
   CN=Administrator,CN=Users,DC=myDomain,DC=company,DC=com
2. Specify the binding password for the connection:
   <PARAMETER name="bindPasswd">noBodyShouldKnowTh1s</PARAMETER>
3. Specify the mode for authentication:
   <PARAMETER name="authMode">fetch</PARAMETER>
4. Specify the DN to fetch. This means that the LDAP tree will be followed down the given path stated by the DN and at the located User object a distinct attribute will be compared against the password or another fixed value.
   The DN is typically composed using the entered user credentials. The placeholders
   {userid}
   {password}
   {domain}
    will be replaced by the submitted login information. Before replacement, the characters "*()" in the entered credentials will be escaped.
   Example:
   <PARAMETER name="fetchDN">
   CN={userid},CN=Users,DC={domain},DC=company,DC=com
   </PARAMETER>
5. Specify the attribute of the LDAP User object which should be used for comparison against the password:
   Example:
   <PARAMETER name="attribute">telephoneNumber</PARAMETER>
6. Specify whether the attribute value should be encrypted before comparism. The encryption method is SHA-1.
   This will be set to "false" in most cases.
   <PARAMETER name="encryptAttributeBeforeCompare">false</PARAMETER>
7. Specify whether the entered password of the user should be encrypted before comparism. The encryption method is SHA-1.
   This will correspond to "false" in most cases.
   <PARAMETER name="encryptPasswordBeforeCompare">false</PARAMETER>

All other options of section LDAP are not relevant in this case.

7.4.2.4 Using LDAP Search Mode

The "search" mode is even more advanced. In complex environments, the User objects will typically be distributed over several different subtrees within LDAP. Fetch is not sufficient in this case, so we allow a recursive "search" below a given subtree. To perform this search we need a root part of the tree - the DN from which to start (here referred to as "searchScope"). Furthermore we need a search clause to tell us how we find a User object that might by a potential candidate. And finally we need an attribute to compare the password against.

To process authentication using a LDAP search the following settings need to be done in the configuration:

1. Specify the bind DN to use for authentication:
   <PARAMETER name="bindDN">[your bind DN]</PARAMETER>
   DN with which the LDAP-Connection is established. These values will be fixed as they are needed for binding, but could also be anonymous.
   Example:
   CN=Administrator,CN=Users,DC=myDomain,DC=company,DC=com
2. Specify the binding password for the connection:
   <PARAMETER name="bindPasswd">noBodyShouldKnowTh1s</PARAMETER>
3. Specify the mode for authentication:
   <PARAMETER name="authMode">search</PARAMETER>
4. Specify the search filter to use when trying to find a LDAP record.
   Regular LDAP search filter expressions can be entered. See RFC 2254 for a detailed description of LDAP filters.
   The known placeholders
   {userid}
   {password}
   {domain}
   can be used in the expression and will be replaced automatically by the submitted login information. Before replacement, the characters "*()" in the entered credentials will be escaped.
   Note: Only the first matching record will be used for authentication!
   Examples:
   <PARAMETER name="searchFilter">
   mail=*_{userid}@{domain}.company.com
   (&(sAMAccountName={userid})(ObjectClass=user))
   employeeNumber={userid}
   </PARAMETER>

5. Specify the search scope.
   Context which will be searched for an LDAP user entry.
   Again, the tokens
   {userid}
   {password}
   {domain}
   can be used and will be replaced by the submitted login information. Before replacement, the characters "*()" in the entered credentials will be escaped.
   Example:
   <PARAMETER name="searchScope">
   CN=Users,DC={domain},DC=company,DC=com
   </PARAMETER>
6. Specify the attribute which should be compared against the password:
   Example:
   <PARAMETER name="attribute">telephoneNumber</PARAMETER>
7. Specify whether the attribute value should be encrypted before comparism. The encryption method is SHA-1.
   This will correspond to "false" in most cases.
   <PARAMETER name="encryptAttributeBeforeCompare">false</PARAMETER>
8. Specify whether the entered password of the user should be encrypted before comparism. The encryption method is SHA-1.
   This will correspond to "false" in most cases.
   <PARAMETER name="encryptPasswordBeforeCompare">false</PARAMETER>

All other options of the section LDAP are not relevant in this case.

7.4.2.5 Using LDAP Search and Authentication Mode (most valuable for accessing an MS ActiveDirectory)

Typically in an ActiveDirectory world you will still not be satisfied with the approaches discussed up to now. "Bind" will not work as in large environments you will not be able to specifiy a bind DN which is flexible enough, and "search" and "fetch" rely on attributes to be compared instead of using the ActiveDirectory password - which is not exposed as a separate attribute that we could use for comparison.

Any help out of this dilemma? Yes. We allow another mode which is "Search and Authenticate". The basic idea is that after finding a user candidate in the LDAP tree we bind it, because we now can get the real bind DN of this user. The name of this attribute holding the DN is "distinguishedName" in MS ActiveDirectory, in other LDAP directories it might be different, i.e. "dn".

To process authentication using a LDAP search and authenticate the following settings need to be done in the configuration:

1. Specify the bind DN to use for authentication for searching the user account:
   <PARAMETER name="bindDN">[your bind DN]</PARAMETER>
   DN with which the LDAP-Connection is established. These values will be fixed as they are needed for binding.
   Example:
   CN=Administrator,CN=Users,DC=myDomain,DC=company,DC=com
2. Specify the binding password for the connection:
   <PARAMETER name="bindPasswd">noBodyShouldKnowTh1s</PARAMETER>
3. Specify the mode for authentication:
   <PARAMETER name="authMode">search+authenticate</PARAMETER>
4. Specify the search filter to use when trying to find a LDAP user.
   Regular LDAP search filter expressions can be entered. See RFC 2254 for a detailed description of LDAP filters.
   Tokens
   {userid}
   {password}
   {domain}
   will be replaced by the submitted login information. Before replacement, the characters "*()" in the entered credentials will be escaped.
   Note: Only the first matching record will be used for authentication!
   Examples:
   <PARAMETER name="searchFilter">
   mail=*_{userid}@{domain}.company.com
   (&(sAMAccountName={userid})(ObjectClass=user))
   employeeNumber={userid}
   </PARAMETER>

5. Specify the search scope.
   Context which will be searched for an LDAP user entry.
   Again, tokens
   {userid}
   {password}
   {domain}
    will be replaced by the submitted login information. Before replacement, the characters "*()" in the entered credentials will be escaped.
   Example:
   <PARAMETER name="searchScope">
   CN=Users,DC={domain},DC=company,DC=com
   </PARAMETER>
6. Specify the attribute which should be user to define the DN of the user.:
   Examples:
   <PARAMETER name="attribute">dn</PARAMETER>
   <PARAMETER name="attribute">distinguishedName</PARAMETER> (recommended for MS Active Directory)

All further options of section LDAP are not relevant in this case.

7.4.3 Corporate Directory

This is basically used by Daimler internally in Stuttgart.

Edit: [EWA_HOME]\config\um_cfg.xml

Set <PARAMETER name="userManagementService">HPUserManagement</PARAMETER>
Set <PARAMETER name="authenticationMode">CorporateDirectory</PARAMETER>

Modify the section "CorporateDirectory" to match the DC CorporateDirectory LDAP settings and furthermore assure that the internal IT allows your EWA Server to access the Corporate Directory.

7.4.4 StarTekInfo

This is only used by MB USA for integration of EWA into the external StarTek portal. In this mode most parts of the EWA internal UserManagement become switched off.

Copy
[DVD-DRIVE]:\ewa\central\config\startekapi.properties
to
[EWA_HOME]\config
Edit the URL to the StarTekInfo server inside this file, if the server has changed.

Edit: [EWA_HOME]\config\um_cfg.xml
Set <PARAMETER name="userManagementService">StarTekInfo</PARAMETER>.

To run the WIS / EPC applications the user needs to log on using the StarTekInfo Portal. The rendered portal web page needs to use the following or an equivalent HTML form to start the application:

<form name="docWisForm" method="post" action="http://server.domain:9000/EWA-net/ewa-net.jnlp">
    <input type="hidden" name="userid" value="STAR0101" />
    <input type="hidden" name="sessionid" value="ABCDEFGHIJKLMNOPQRSTUVWXYZ" size="50" />
    <input type="hidden" name="function" value="start" />
    <input type="hidden" name="method" value="start" />
    <input type="hidden" name="appid" value="50" />
</form>

Check the Proxy Settings in the core configuration file [EWA_HOME]\config\core_cfg.xml. The EWA server needs to perform HTTP network access to the configured StarTek server and thus you may have to specify a proxy to allow this.

7.5 User Reports Configuration

EWA can be configured to send reports containing information about its users and their details, permissions for applications and data, and the groups and workshops they are members of. There are two types of user reports that can be requested:

1. User Reports for the central accounting in XML form (archived and encrypted)
2. User Reports for markets in HTML and CSV format (archived and optionally password protected)

7.5.1 User Reports for the Central Accounting

These reports are sent to the central accounting and are to be generated once a day. This daily generation rate cannot be changed. In the first step a backup-process is performed which stores the whole database as XML. This data is then transformed with an XSLT-Style sheet into the report. This report is then archived, encrypted using AES and sent to a free configurable email-address.

The process fulfills the following requirements:

• The report is generated in XML format.
• The files is archived and encrypted using AES.
• The archived report can be sent to one configurable email address and an arbitrary number of email addresses as carbon copy.
• Decryption of the archive requires a specialized tool at the receiving site.
• The full configuration is stored in the core_cfg.xml
• The ID in the configuration for this report MUST be "accounting".

7.5.2 Configuration

The configuration for these two types of reports is similar. The main difference is that the ID of the reports for the central accounting should be "accounting" while the IDs for the market reports can be arbitrary. The market reports also have several additional configuration options.

Reports for the central accounting are configured and activated in the configuration file:

File: [EWA_HOME]\config\core_cfg.xml

Note:
Any changes in the configuration will only be active after the server has been restarted.

The relevant block is:

<SECTION name="UserReporting">

The UserReporting block of the core_cfg consists of three parameters, that are valid for both the accounting as well as for the market reports, and the "accounting" section.

7.5.2.1 Main configuration parameters

1. Flag if the user reporting extension is active. Setting to true will display further options in the Web GUI for managing users to types:
   <PARAMETER name="EnableExtendedUserType">true</PARAMETER>
2. Flag if the accounting and markets user reporting are active and send out emails. When running in a clustered environment only ONE node should send out the user reports. Setting this parameter to false deactivates the generation of the reports and the sending of emails for both the central accounting and the markets:
   <PARAMETER name="SendUserReport">true</PARAMETER>
3. Path for saving the report files on the disk. The path defined here will be appended to the EWA installation directory:
   <PARAMETER name="ReportDirectory">reports</PARAMETER>
   Any reports generated will be saved in this directory using the following conventions:
   For central accounting:
   <EWA>\<ReportDirectory>\userreport.xml                                     for market reports
   <EWA>\<ReportDirectory>\userreport.xml.zip                             for market reports
   <EWA>\<ReportDirectory>\userreport.xml.zip.bin                     for market reports (this encrypted file is attached to the mail)
   For the markets:
   <EWA>\<ReportDirectory>\<requestingID>_userreport.xml    for market reports
   <EWA>\<ReportDirectory>\<requestingID>_userreport.html      for market reports
   <EWA>\<ReportDirectory>\<requestingID>_userreport.csv        for market reports
   <EWA>\<ReportDirectory>\<requestingID>_userreport.zip        for market reports (this possibly encrypted archive is attached to the mail)

Requesters are defined in SECTIONs with requestingIDs and activity flags.

7.5.2.2 Configuration settings for the central accounting reports

<!-- The setting for the accounting xml report: -->
<!-- The ID "accounting" is reserved for this type of report -->
<!-- it should not be used as an ID for other types of report requesters -->
<!-- The following are valid options for the "active" parameter: -->
<!-- false: No reports are generated and sent by email (default) -->
<!-- true: License Reporting is active (as xml for the central accounting) -->
<SECTION requestingID="accounting" active="true">
   <PARAMETER name="ExportTime">00:00</PARAMETER>
   <!-- valid entry is only 'daily' -->
   <PARAMETER name="ExportDate">daily</PARAMETER>
   <!-- valid entry is only 1 -->
   <PARAMETER name="ExportDay">1</PARAMETER>
   <PARAMETER name="TargetAddressTo">startkey.ordering@daimler.com</PARAMETER>
   <PARAMETER name="TargetAddressCc">someaddress1@example.com</PARAMETER>
   <PARAMETER name="TargetAddressCc">someaddress2@example.com</PARAMETER>
</SECTION>

1. The active parameter in the SECTION tag defines if this report is active and whether it will be executed. Setting this value to false will prevent the report from being generated and sent.
2. The ExportTime parameter defines the time when the report will be executed and sent. Valid notation is "hh:mm". Failing to provide a valid strings results in resetting the export time to 00:00.
3. The ExportDate parameter defines the interval at which the report will be generated and sent. The only valid entry for the central accounting reports is "daily".
4. The ExportDay parameter defines the day within the specified interval (ExportDate) when the report will be executed and sent. The only valid entry for the central accounting reports is "1".
5. The TargetAddressTo parameter defines a single email address to send the archived an encrypted report to. Do not change this value for the accounting reports.
6. The TargetAddressCc parameter defines a single email address to send the archived an encrypted report to as carbon copy. Arbitrary number of parameters is allowed. Leave empty if no emails should be sent as CC.

Note:
Please be aware that the requestingID for this report should be accounting in order for it to be sent in the correct format.

Note:
Changing the value of the active flag to false will prevent the user report from being generated and sent to central accounting.

Note:
Be aware that the accounting report is used to generate invoices. Therefore it is very important not to send non-productive data. Please make sure that the report is deactivated if you set up a test server.

7.5.3 Market User Reports

There have been various requests by MPC/GV and other contracting parties for an overview of the ordered users and their access-rights. To avoid costly manual creation the reports are generated automatically by EWA.

The process fulfills the following requirements:

• Only specific workshops and groups are selected for the report using matching with standard regular expressions.
• The report is generated as HTML and CSV (Comma separated values).
• The format of the HTML-Report is consistent with the official order format.
• Both files as packed into a password-protected archive with a free configurable password.
• The archived reports can be sent to one configurable email address and an arbitrary number of email addresses as carbon copy.
• The configuration of the separate market report requesters is stored in marketreports_cfg.xml
• The general parameters for the configuration are stored in the UserReporting section of the core_cfg.xml

7.5.3.1 Configuration settings for the market reports

<!-- this is an example of a market report requester -->
<!-- the requestingID attribute is the name of this requester -->
<!-- all requestingIDs within this file need to have different values -->
<!-- the 'active' attribute determines whether to activate this requester or not --><!--
<SECTION requestingID="TestMarketOne" active="true">
-->;

    <!-- this parameter defines the time of the day when the report is to be executed -->
    <!--
    <PARAMETER name="ExportTime">22:44</PARAMETER>
    -->

    <!-- This parameter defines the interval at which reports are generated -->
    <!-- valid entries are daily, weekly, monthly, bi-monthly, quarterly, semi-yearly, yearly -->
    <!--
    <PARAMETER name="ExportDate">monthly</PARAMETER>
    -->

    <!-- This parameter defines the day corresponding to the interval at which reports are generated -->
    <!-- valid entries are (for interval: <range of valid values>): -->
    <!-- daily: 1; weekly: >=1, <=7; monthly: >=1, <=28-31; quaterly >=1, <=89-91; semi-yearly: >=1, <=180-184; yearly: >=1, <=365/366 -->
    <!-- The range of valid values depends on the current year, halfyear, quarter and month. -->
    <!--
    <PARAMETER name="ExportDay">1</PARAMETER>
    -->

    <!-- Here a single address can be defined to receive the email with the reports -->
    <!--
    <PARAMETER name="TargetAddressTo">someaddress@example.com</PARAMETER>
    -->

    <!-- Password for the zip archive that is created and sent by email. Optional -->
    <!--
    <PARAMETER name="Password"/>
    -->

    <!-- The following line defines a single CC address where a report email is to be sent -->
    <!-- Please note that you can duplicate this line several times to enter several CC addresses -->
    <!--
    <PARAMETER name="TargetAddressCc">some@example.com</PARAMETER>
    <PARAMETER name="TargetAddressCc">other@example.com</PARAMETER>
    -->

    <!-- the names of the necessary workshops for the report can be defined using regular expressions (see the advanced configuration documentation for detailed syntax explanations and examples) -->
    <!-- example: if all workshops beginning with "MBworkshop" are needed for the report use: "\AMBworkshop" or "^MBworkshop" as regular expression -->
    <!-- example: if all workshops ending with "test" are needed for the report use: "test\Z" or "test$" as regular expression -->
    <!-- comment this line if all workshops are needed for the report -->
    <!-- Group filters for workshops: -->
    <!-- Using the "groups" parameter a regular expression for the groups that should be included into the report can be defined -->
    <!-- Leaving it empty or not defining this parameter at all results in including all groups into the report. -->
    <!-- You can define several regular expressions using the OR notation - '|' -->
    <!-- Expressions are case sensitive! -->
    <!-- The next example includes all workshops that start with "MyShop"
    and all groups that either start with "abc" or end with "def"
    <PARAMETER name="Workshop" groups="(^abc)|(def$)">^MyShop</PARAMETER> -->
    <!-- The next example includes all workshops that start with "547" and end with "21" (with arbitrary characters in between)
    As no "groups" parameter is defined all groups will be imported.
    <PARAMETER name="Workshop">^547.*21$</PARAMETER>
    -->

<!-- End Tag for this report requester -->
<!--
</SECTION>
-->
</SECTION>

1. The requestingID parameter in the SECTION tag defines the name of this report and will be used for the generation of the e-mail body and the names of the report files. All requesters need to have different names.
2. The active parameter in the SECTION tag defines if this report is active and whether it will be executed.
3. The ExportTime parameter defines the time when the report will be executed and sent. Valid notation is "hh:mm". Failing to validate the format results in resetting the time to 00:00
4. The ExportDate parameter defines the interval at which the report will be generated and sent. Valid entries are "daily", "weekly", "monthly", "bi-monthly", "quarterly", "semi-yearly" and "yearly".
5. The ExportDay parameter defines the day within the specified interval (ExportDate) when the report will be executed and sent. E.g. If ExportDate is monthly and ExportDay is 3, the report will be sent exactly on the 3rd day of each month.
6. The TargetAddressTo parameter defines a single email address to send the archived an encrypted report to.
7. The TargetAddressCc parameter defines a single email address to send the archived an encrypted report to as carbon copy. Arbitrary number of parameters is allowed. Leave empty if no emails should be sent as CC.
8. The Password parameter contains a password for the archive that is generated for the report files. Leave empty if no password is required.
9. The Workshop parameter contains a regular expression defining the names of the workshops that should be included in the report upon successful match.
10. The groups parameter within the Workshop element defines a regular expression for all the groups the should be included in the report upon successful match.

Note:
Both positive and negative regular expressions can be defined using certain special characters.

A short example for positive regular expression:
    ^abc.*def$            :    include all that start with "abc" and end with "def" (with arbitrary characters in between)

A short example for 'negative' regular expression:
    ^abc(?!.*def$)    :    include all that start with "abc" and DO NOT end with "def" (with arbitrary characters in between)

For detailed explanations on the syntax of regular expressions and examples see below.

Note:
Any changes in the configuration will only be active after the server has been restarted.

7.5.3.2 Changing the E-Mail Body of the Market Reports

The body of the e-mail that the market reports are sent with is generated by the XSL transformation file licReportEmail_mr.xsl. This file is located in the webapps\EWA-net\WEB-INF folder of your EWA-net installation. The default body has the following format:

Dear recipient,

please find attached the <export interval> report of all workshops with names like:
<workshop and groups regular expressions list>

Best Regards,

Your system administration team.

7.5.3.3 Regular Expression Syntax for Workshop and Group Filters

Using different types of filters is possible for the market reports functionality of EWA. Filters allow to include only specific workshops and groups into the market reports and exclude others. Filters are defined using the standard regular expressions syntax.

Special characters:

|          alternative ("or", e.g.: this|that)
.               one arbitrary character
*               repeat the last character (the same character may present zero or many times)
.*              arbitrary string (zero or more arbitrary characters)
+               repeat the last character(at least one time)
?               the last character should appear one time or not at all
{n} {n,m}       the last character must appear n or n to m times (e.g.: W{3} corresponds to WWW)
\A              start of the string
^               start of the string
\Z              end of string
$               end of string
\w              alphanumeric character including "_"
\W              not alphanumeric character including " "
\b              word boundary ("boundary", e.g.: \bin\b for the word 'in')
\B              non-boundary
\d              digit
\D              no digit
\s              whitespace
\S              non-whitespace
[...]           class of characters, e.g. [A-H] letters A to H
[^...]          exclusion of a class of characters, e.g. [^A-H]: any characters besides any from the class [A-H]
?!              Negate the next (e.g. ^abc(?!.*def$|ghi$) - anything that starts with "abc" and does NOT end with "def" or "ghi"

Regular Expressions examples (Case Sensitive!!!)

1. All strings that have "200" anywhere in them: "200"
        Example: Will accept e.g. "200xxx", "xxx200", "xxx200yyy"
        Note: If the pattern does not define that the search should
        start at the beginning or at the end, the whole string is
        searched for occurrences.

2. All strings that begin with a "200": "\A200" or "^200"
        Example: Will accept e.g. "200xxxx"
        Will NOT accept : "y200xxx" (200 is not the beginning of the string)
        Note: "\A" or "^" denotes the beginning of a string

3. All strings that end with a "200": "200\Z" or "200$"
        Example: Will accept e.g. "xxxx200"
        Will NOT accept : "xxxx200y" (200 is not the end of the string)
        Note: "\Z" or "$" denotes the end of a string

4. All strings that start with exactly three arbitrary characters,
        followed by a "200", followed by arbitrary characters: "\A...200"
        Example: Will accept e.g. "123200" or "123200xxx".
        Will NOT accept : "12200" or "12200xx" (only two characters before "200")
        Note: "." denotes an arbitrary single character
        Note: ".*" denotes an arbitrary number of arbitrary characters

5. Any string that has at least one character: "."

6. Strings starting with "200" followed by an arbitrary number of characters,
        followed by "91", followed again by an arbitrary number of characters: "\A200.*91
        Example: Will accept e.g. "200xxxx91" or "200xx91xxxx" or "20091xxx"
        Will NOT accept "x200yy91" as 200 is not at the beginning

7. String starting with "200", then two characters, then "91",
        then arbitrary characters then "21" then end of string: "\A200..91.*21\Z"
        Example: Will accept e.g. "200xx91yyyy21" or "200xx9121"
        Will NOT accept : "200x91yyyy21" (only one character between 200 and 91)
        "200xx91yyyy21z" (21 is not at the end)
        "z200xx91yyyy21" (200 is not at the beginning)

Negative examples:
8. String that are NOT exactly "abcdef": "^(?!abcdef$)"

9. String that start with "abc" then have arbitrary characters
        and do NOT end with "def" or "ghi": "^abc(?!.*def$|ghi$)"
        Example: Will accept e.g. "abcXXX"
        Will NOT accept e.g. "abcXXXdef" of "abcXXXghi"

7.6 Shoppinglist/Joborder webservice exchange

EWA provides the Job Order (JO)/ Shopping List (SL) data via a central provided web service.

A web service notification mechanism is provided to inform all atached systems if a new JO/SL was stored in EWA’s core database. In response to a notification a system like Webparts or ASM then queries EWA’s web service to retrieve the data.

Process identification data is needed for each JO/SL dataset because every single user will have multiple JO/SL data sets stored in EWA’s central core database. Therefore EWANAPI needs a new optional parameter to submit the actual process context to WIS/EPC.

EWA needs to keep the existing file exchange mechanisms because EWA is used with a wide variety of DMS systems which aren’t controlled by Daimler. When EPC or WIS is started with a process ID it should automatically default to using the Data Exchange Service to store JO/SL data.

When EPC starts WIS it should pass its current process ID to WIS and vice versa.

Additional information about the web service can be taken from the Data Exchange Service User Documentation

8 Single Sign On with EWA

8.1 Single Sign On

When it comes to web applications and portal solutions, one of the main annoyances that users have to deal with is having to enter their credential information again and again for many of those applications. Single Sign On (often referred to as SSO) is a mechanism to provide more comfort to the user while still keeping the security aspects in mind.

Single Sign On can be enabled transparently for EWA, but as it has some requirements from the infrastructure side it cannot and will not be enabled and installed by default. If you decide to switch your EWA environment to Single Sign On, please keep in mind that you still have to store all the relevant user information inside EWA's User database. This is caused by the fact that EWA still has to perform the authorization internally - although the authentication might have already been performed by Single Sign On.

Single Sign On feature will be automatically switched on in case your environment has been prepared according to the steps below. If a user cannot be authenticated via Single Sign On then EWA automatically falls back to interactive login.

8.1.1 Windows NTLM Authentication

You will typically make use of Windows NTLM authentication if

• most or even all of the users who want to have access to EWA are setup in a Windows ActiveDirectory structure and login to Windows into a domain
• a Web Server is already part of this domain or can be made part of this domain

Note:
Please ensure that you have set up all users with their respective MS Windows domain accounts inside of EWA, i.e. not just "johndoe", but "EMEA\johndoe" in case the user "johndoe" is part of the "EMEA" domain. Forgetting this results in the fact that users cannot automatically be authenticated.
The passwords of the users inside the EWA system do not have to be "real" passwords. Dummy passwords ensuring that the EWA passwords policy are being matched will be sufficient.

8.1.1.1 Setting up SSO on Tomcat and Internet Information Server (IIS)

A quick overview over the necessary steps that are required to allow NTLM authentication with Tomcat and IIS:

• Setup an IIS on a Windows Server supported by EWA. This server must of course also be part of the domain the users logon to.
• Configure and restart the EWA Server accordingly
• Install some files from the EWA delivery media
• Configure and restart the IIS

After setting up Tomcat and IIS you must also perform the steps in the following sections:

• Check the environment
• Client Setup for SSO
  • Ensure the correct Java Runtime on the clients
  • Update EWANAPI on the clients

The steps will be described in detail below. Don't worry, they are quite quickly and easily performed.

8.1.1.1.0.1 Setup Internet Information Server

You may setup IIS on the same machine as your EWA installation is running on, or you may install it on a separate machine. For smaller installations that will run in NTLM mode only it might be sufficient to setup the IIS on the same machine as the EWA server is running on.

Note:
For large EWA installations and/or installations that you want to run in mixed mode (users being part of a Windows domain and "other" users who would have to login to EWA interactively) you will definitely have to setup separate instances of Web Servers - one with NTLM security switched on, one with anonymous security to allow interactive login to EWA.

Note:
If you run a local version of EWA (with a local access authorization) you will definitely have to setup the WebServer on the same machine as the EWA Server is running on. If you do not follow this guideline, the EPC and WIS application will not start claiming that it cannot exchange a token with the server.

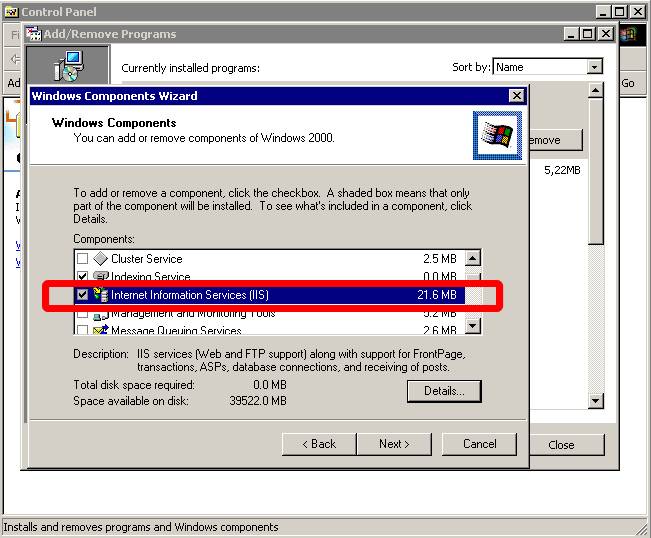

Installation, if not already done, can be performed via the Windows Control Panel in the "Add/Remove Software" control. Choose "Add/Remove Windows Components".

Note:
This description assumes that IIS can be used for the EWA integration only. For hosting of several different applications with this single IIS instance  you may encounter restrictions or problems.

After installing IIS you have a new directory structure below C:\InetPub

8.1.1.1.0.2 Configure and restart the EWA server

In order to allow a Web Server plugin to contact the EWA application server we must enable the module allowing this. Open the file

[EWA_HOME]\server\conf\server.xml

Search for the word "AJP/1.3" which will guide you to the connector for the Web Server plugin. This is by default commented out, so remove the XML comments before and after the "Connector" section.

If the content in your standard XML file looked like this:

  <!--
      Define an AJP 1.3 Connector on port 8009
<Connector port="8009"
        backlog="200"
        maxThreads="200"
        enableLookups="false"
        redirectPort="8443"
        secure="false"
        protocol="AJP/1.3"
        tomcatAuthentication="false" />
 -->

Simply change it to this (see the marked characters):

  <!--
      Define an AJP 1.3 Connector on port 8009
  -->
<Connector port="8009"
        backlog="200"
        maxThreads="200"
        enableLookups="false"
        redirectPort="8443"
        secure="false"
        protocol="AJP/1.3"
        tomcatAuthentication="false" />

Now we have to tell EWA that clients will contact the EWA environment via the standard HTTP port 80 instead of the standard EWA port 9000. In order to achieve this, please open the file

[EWA_HOME]\config\core_cfg.xml

in a text editor and change the following setting accordingly to port 80. Ensure you have SSL disabled

<SECTION name="AccessGateway">
        <SECTION name="ApplicationSettings">
        <!-- SSL within EWA - do not forget to configure your server accordingly -->
             <PARAMETER name="sslEnabled">false</PARAMETER>
            <!-- SSL for client - server communication - should be configured only together with sslEnabled -->
                <PARAMETER name="sslForClientsEnabled">false</PARAMETER>
             <PARAMETER name="httpPort">80</PARAMETER>

Note:
SSL on the EWA server will not be used. If you want to secure access to EWA you may install a server certificate on the Web Server machine. Secured connection between the Web Server and the EWA server is not needed.

Restart the EWA server now. You will still be able to access the login page via port 9000 on the EWA server itself, but you will not be able to start any EWA client application anymore. This is okay.

8.1.1.1.0.3 Install files from the EWA media

• Create a new directory on your Web Server machine, i.e. C:\InetPub\wwwroot\ewa_sso. (this is the directory this documentation refers to in the subsequent sections)
• Open the ZIP file which contains the files needed for the integration from [DVD_DRIVE]\ewa\central\tools\iis_integration.zip into this directory:

• Copy the following files from the ZIP into the directory mentioned above (C:\InetPub\wwwroot\ewa_sso)
  isapi_redirect.dll
  isapi_redirect.properties
  uriworkermap.properties
  workers.properties (if you also intend to setup a cluster you may choose to install workers.properties.cluster and rename it to workers.properties) into this directory:

• If you installed the files into the directory recommended above, you can skip this step.
  If you decided to choose another location, please open the file isapi_redirect.properties in a text editor now and adjust the path information inside it according to the directory you have chosen to install the files in.
  The file by default looks like this - you may change the settings marked bold:


  # DO NOT TOUCH THE NEXT ENTRY
  extension_uri=/jakarta/isapi_redirect.dll


  # YOU MAY TOUCH THESE
  # Modify this section to your needs.
  log_file=C:\Inetpub\wwwroot\ewa_sso\iis_redirect.log
  # MODIFY THIS VALUE TO error ONCE YOUR SYSTEM RUNS CORRECTLY. The logfile size will increase heavily in debug mode!
  log_level=debug
  worker_file=C:\Inetpub\wwwroot\ewa_sso\workers.properties
  worker_mount_file=C:\Inetpub\wwwroot\ewa_sso\uriworkermap.properties


• Open the file workers.properties in a text editor and set the property for the hostname correctly. The standard is "localhost" for an installation where IIS and EWA server run on the same machine. Replace "localhost" by the name or IP address of your EWA server.
  Example:


  # workers.properties.minimal -
  #
  # This file provides minimal jk configuration properties needed to
  # connect to Tomcat.
  #
  # The workers that jk should create and work with
  #
  worker.list=ewanet


  #
  # Defining a worker named ajp13w and of type ajp13
  # Note that the name and the type do not have to match.
  #
  worker.ewanet.type=ajp13
  worker.ewanet.host=localhost
  worker.ewanet.port=8009



8.1.1.1.0.4 Configure and restart the IIS

After you have all files installed you can start configuring the IIS. Open the Windows Management Console and open the hive of the "Internet Information Services".

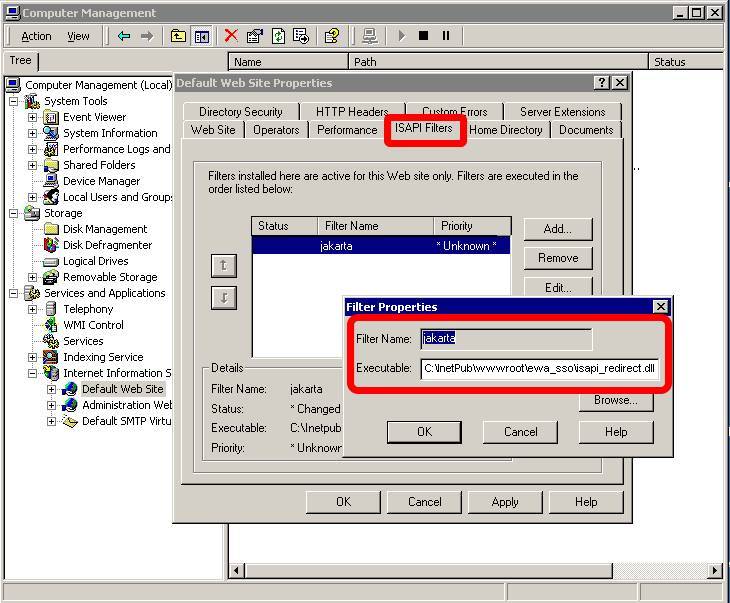

Add the redirection handler which will forward all EWA related request to the EWA server. Select the "Default Web Site" hive and display its properties. Select the tab "ISAPI Filters" and add a new filter with name "jakarta" and pointing it to the isapi_redirect.dll into this directory:
file in the installation directory of your SSO files, i.e. C:\InetPub\wwwroot\ewa_sso\isapi_redirect.dll

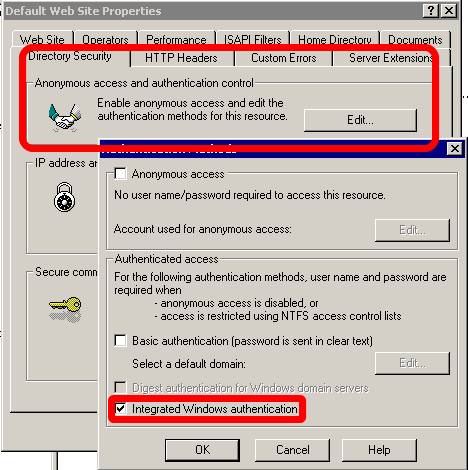

Press "OK" and select the tab called "Directory Security". Click on "Edit" in the field named "Anonymous access and authentication control". Uncheck any current checkmark and set the checkmark "Integrated windows authentication". Ensure that only this checkmark is set.

Press "OK" to close this dialog and press "OK" again on the properties main dialog. You might be asked whether you want to apply the setting to some other components as well. Simply press "OK" here again and continue.

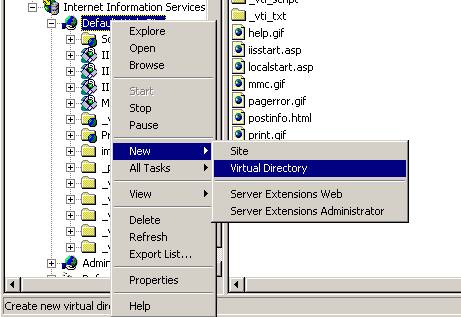

Now install an additional so called "Virtual Directory". Right-click the "Default Web Site" hive and select "New -> Virtual Directory". This will open a wizard. Please follow the following instructions exactly:

You will be asked for an alias. Please enter "jakarta".

The next screen will ask you for the directory which this virtual directory shall represent. Please enter "C:\InetPub\wwwroot\ewa_sso" or the directory you had chosen above.

The last screen will ask you for the permissions. Ensure you enable the checkmark "Execute (such as ISAPI applications or CGI)".

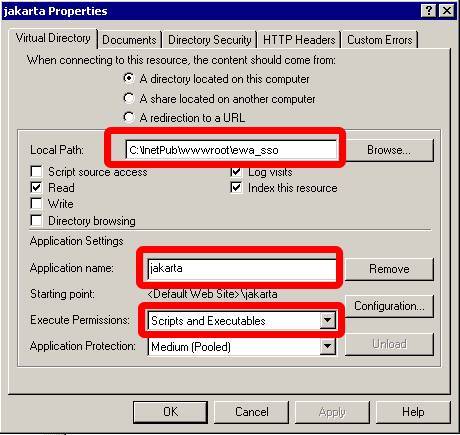

Finalize the wizard, right click the just created virtual directory "jakarta" and compare your settings with the following screen:

If you run Windows Server 2003 or newer for your Web Server (only in this case) you will have to perform the following additional step which is not needed on Windows 2000 Server based systems:

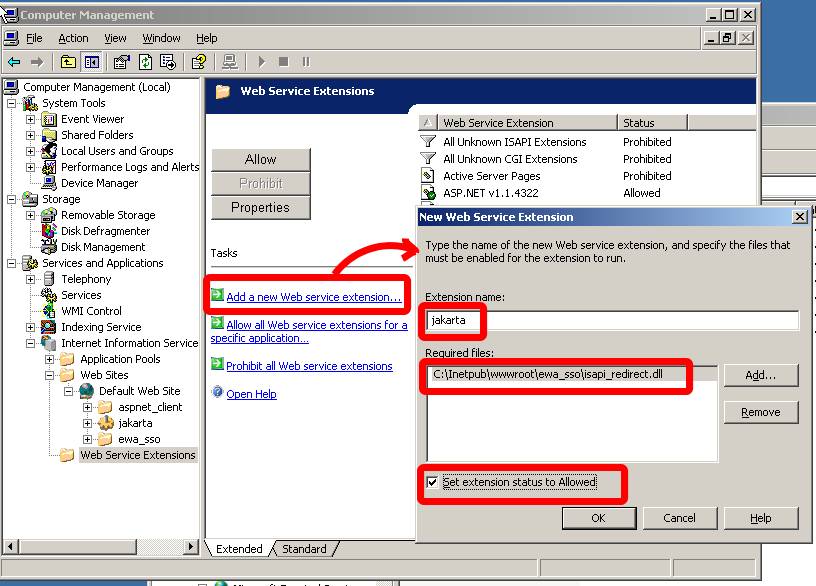

Click on the "Web Service Extensions" hive and click on "Add a new Web Service extension". If you forget this step the integration will not work as by default unknown ISAPI filters will be forbidden to run. Fill out the appearing dialog as follows:

Okay, that's all for the configuration of the Web Server.

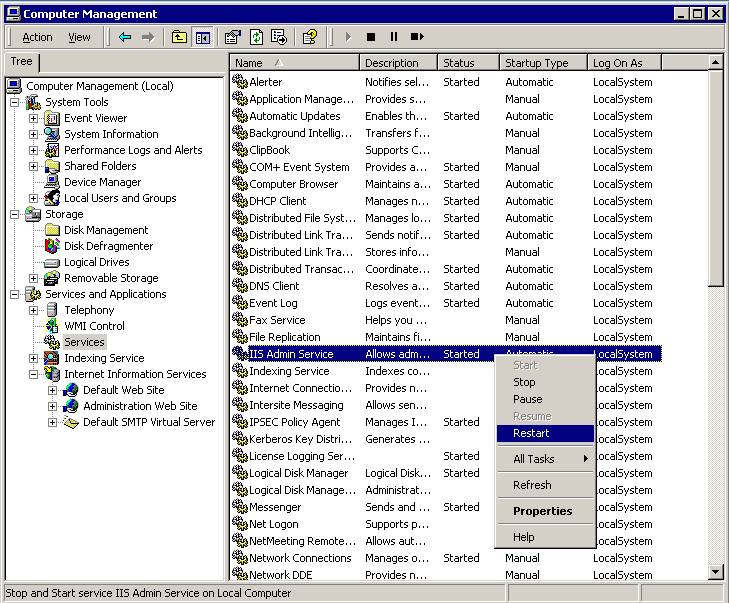

Go to the "Services" hive inside the Management console and restart the "IIS Admin Service" now.

Please review again all your settings.

8.1.1.2 Check the Environment

You can now check whether your Web Server is correctly forwarding the requests to the EWA server.

Open Internet Explorer on the Web Server machine and enter the URL:

http://localhost/EWA-net

The minimum you should see now is the login mask of EWA. If you cannot see this, please review the steps above and perform each of the steps again. Typical pitfalls are misspelled directory names, a wrong hostname, etc.

If this check is correctly working, try to connect the Web Server from any other computer of the domain and see if that works as well. Complete your tests by also starting WIS and EPC to ensure that your environment is completely working.

If you are currently logged on to a Windows domain and this account has already been setup within EWA's User Management then you should automatically be logged in - the interactive login page in this case will automatically be skipped and you will automatically see the "Programs" menu within EWA.

SSO will automatically be used if you connect to the EWA server via the URL

http://localhost/EWA-net

If you want your users to be forced to login interactively tell them to connect via the URL

http://localhost/EWA-net/Login/showLogonForm.do

Note:

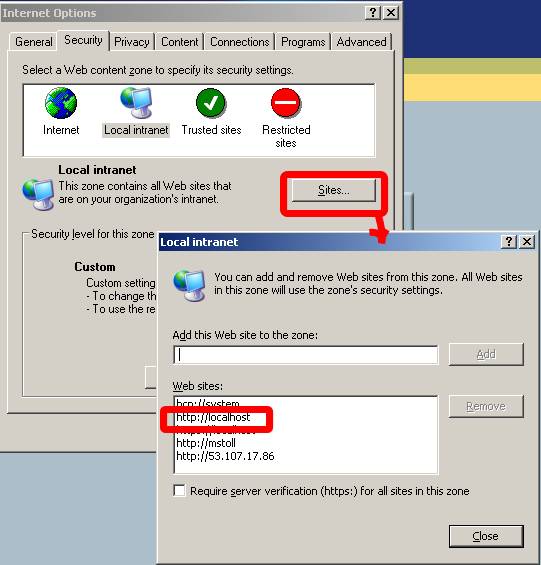

If you perform tests on your Web Server on Windows 2003 directly, please check your Site settings within Internet Explorer to ensure that NTLM credentials will really be sent to the web server. The appropriate settings can be found in "Tools -> Internet Options ->  Security". Please click on "Sites..." and ensure that "http://localhost" is part of that list. See below:

Example:
Let's assume you have been logged on to Windows as "EMEA\johndoe" where "johndoe" is the account name (user login) and "EMEA" the name of the Windows domain the user belongs to. You may setup a user (no matter which user role) now in EWA with the fully qualified user login "EMEA\johndoe" (pattern <domain>\<userid>) instead of only his login name. This is the most important thing to be aware of. You will have to provide a password for him as EWA , but this will not be used for SSO, of course, but it might be used as a fallback should the domain login not be possible.

Now that your Web Server integration successfully works, please do not forget to switch the logging level for the bridge down to "error". Open the file isapi_redirect.properties  and change the line loglevel=debug to loglevel=error. Restart the IIS Admin service.

8.1.1.3 Client Setup for SSO

8.1.1.3.0.1 Ensure the correct Java Runtime

Please refer to the EWA requirements and make sure that the proper Java Runtime has been installed on all the client machines that want to make use of the SSO feature.

8.1.1.3.0.2 EWANAPI Update

This step will only have to be performed if your installation makes use of the EWANAPI interface (i.e. for DMS interconnectivity,...). In order to ensure that EWANAPI can make use of the SSO feature, it needs the information to which Web Server it has to connect and on which port.

Therefore the users have to login to EWA, run the EWANAPI Installer which will perform the updates.

After the update, you might simply issue a command like this in a command prompt:

EWANAPI.exe

See it? On Windows clients being part of the domain the user credentials will not have to be provided to EWANAPI anymore. The current user credentials of the logged on user will automatically be used. For users not being part of the domain it's still the old game - they will have to provide their credentials on the command line.
The call above should start the WIS client with the user account of the user who is currently logged on against a domain on that client machine.

Congratulations! Working with EWA has become even more comfortable for you and your users.

8.1.2 SiteMinder Authentication

The aim of this section is to describe how to integrate EWA into a SiteMinder authentication environment. SiteMinder is a web based Single Sign On (SSO) solution from Computer Associates. Web application can be seamlessly integrated into SiteMinder SSO – this is achieved by configuring the application's front end HTTP Server so that requests to the application can be intercepted and in case that the user is not yet authenticated, SiteMinder will redirect the user's browser to the SiteMinder web based login form where the user can supply his username and password. After successfully authenticating SiteMinder issues an access token in the form of a browser cookie and the user's browser is redirected back the original page which it attempted to open. Each and every request to the application server is intercepted by SiteMinder, if the request contains a valid access token (cookie) then the request is passed on the Web Application Server (e.g. tomcat via JK/AJP).

Special adaptation of EWA was required as WIS and EPC applications are Java-Swing applications and not web based. These applications communicate with the backend server via HTTP to read or persist data. The "Client Communication Layer" is the component which has been extended to handle the SiteMinder authentication challenges, where possible transparent to the user. In a minor number of cases a Java-Swing dialog will be displayed to gather the user's credentials required for SiteMinder authentication

8.1.2.1 Configuration of SiteMinder

The installation and base configuration of SiteMinder WebAgent component on the front end HTTP server is beyond the scope of this document please refer to the Computer Associates documentation. After installing the SiteMinder WebAgent on the front end HTTP server it is necessary to specify which URL's will be secured and which will remain unprotected. Unprotected areas are required for the following reasons:

• EPC & WIS use Java WebStart to load the application components (jars etc) from the server. Java WebStart downloads these components from the Application Web Server, however Java WebStart is not capable of handling the SiteMinder authentication challenges.
• When help is started by clicking in one of the Java Swing applications a web browser is started. As this is a new browser instance SiteMinder would challenge the user for a username and password before displaying the help text.
• To allow communication with the server to retrieve SiteMinder settings before the user has logged on.

Note:
It is necessary to configure the SiteMinder WebAgent not to Preserve Post Data. To do this add/set PreservePostData="NO" to the SiteMinder WebAgent configuration file.
Additionally SetRemoteUser="YES" must be set so that the login-name of the user authenticated by SiteMinder is passed through to the tomcat server. The configuration file can be found on the frontend HTTP server and is called LocalConfig.conf, however in some environments the SiteMinder Poilicy Director Server may have been configured to override the local configuration, in this case you must ask the Policy Director administrator to change the two parameter's values.

SiteMinder installations protecting corporate sites are usually visually customized, thus a few parameters must be configured so that EWA can function correctly. The following table lists the parameters which must be configured in the core_cfg.xml file which is in the [EWA_HOME]\config\ folder. The parameters are in the SiteMinder subsection of the AccessGateway section.

8.1.2.2 Working with SiteMinder SSO integration activated

To finalize the installation restart the Web Application Server [Tomcat | WebSphere] and login to EWA. You will also need to ensure the usernames in EWA are the same as those user for logging onto SiteMinder (usually the Email address of the user). When starting EWA in the browser the URL of the front end server, which has been configured for SiteMinder, will be used. The user will be initially redirected to the Corporate SiteMinder login page where he or she must login. After logging the SSO mechanism of EWA will come into action and the EWA application will be shown without the user needing to login again. EPC or WIS can now be started.

In one use case it will be necessary to reenter his/her credentials. This happens if the SiteMinder session times out which happens if the SiteMinder integration has be configured to force users to re-authenticate after a defined period of time. This configuration is a setting of the SiteMinder plug-in which was installed on the front end Server). If the user is working with a web application then he/she will be redirected to the web based corporate logion screen. If however this happens which working with a non web based application (EPC or WIS) then the application will display a dialog requesting the user's credentials.

9 Clustering of an EWA Server

9.1 Clustering

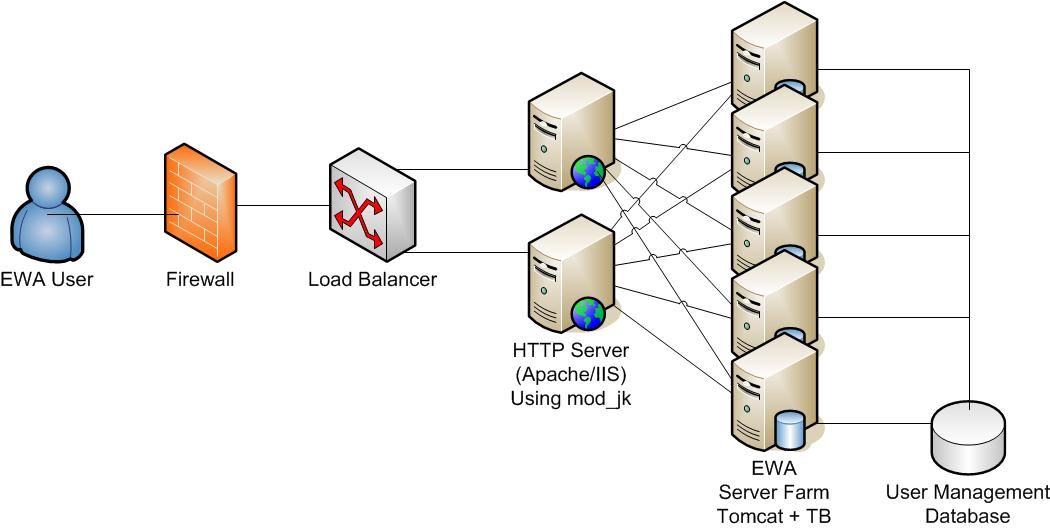

This chapter is based on an evaluation performed for EWA. Goal was to find existent possibilities to deliver EWA in a clustered environment. The main motivation behind the effort is to provide in the future a high available, distributed, fault-tolerant and load-balanced environment.

A clustered EWA should improve:

• Performance
• Fault-tolerance
• Overall user perception of the system

And reduce:

• application's downtime potentially to zero [Cluster1]
• number of complaints made by users
• time and money lost due to system's downtime

Nonetheless this description does not inquire into:

• DNS Request Distribution
  - Fault-Tolerant, Load Balancing between DNS Servers
  - DNS strategies (like round-robin) to resolve domains behind clusters
• TCP NAT Request Distribution
  - Distribution of requests across web servers.
  - Commercial NAT products that could be used.
• Database/JDBC Request Distribution [Cluster2]
  - Fault-tolerant, distributed requests through parallel database instances.
  - Products offering solutions for database/jdbc clustering

Clustering EWA local version depends on Apache and Jakarta Tomcat clustering features.

Basically this document assumes that an appropriate DNS and NAT solution for EWA will be provided by Daimler or other responsible network administrators. On the other hand, this description provides the necessary steps and options to set up an EWA application with multiple web-servers and JSP Servlet engines. How TCP/HTTP requests reach each of these clustered web-servers is not defined or described.

10 De-Installation

For the de-installation of EWA just follow the standard way for Windows applications. Go into the Control panel into “Add or Remove Programs”, select the entry “EWA” and click on “Change/Remove”.

The EWA software will be completely deinstalled from the system.

10.1 "Hardcore" de-installation

You might at some point face the problem that one step of the advanced de-installation fails and subsequently the whole de-installation fails. This is a frustrating thing with Windows installation software as the smallest change to your environment might make a de-installer fail. To help you out of this misery, we provide a script that de-installs the software in a batched way.

The following step will wipe your EWA installation and the services. It is very important to restart after the script has finished, to completely remove all the EWA  services.

Note:
Use this script own your own risk - this is not the official way to de-install the software. But it has proven to often run much better then the official way.

You can find the script on the delivery media:

[DVD-DRIVE]:\ewa\tools\CleanEWAInstallation.vbs

11 Update / Migration

Note:
Update and migration steps are only supported from the exact previous delivery version to the current one. If you have an older version, you might want to de-install it and install EWA from scratch using the most current delivery media.

Note:
EWA does not support a full recover option. You may want to make a full backup of your system before updating the software. A good harddrive partitioning tool or tape backup will help to get the server back working if something should go wrong during an update.

There are two aspects of updating the EWA system:

1. Monthly updates (typically database content for WIS and EPC as well as updates of resources)
2. Major updates of the system software

Typically you will not see a difference in the way how to perform those updates.

11.1 Regular updates

Typically once a month you will receive a new set of DVDs (or receive your media sets online via the ManageSoft online channel). Updating is a simple thing.

Note:
If you performed an upgrade from a 1.2 version of EWA to the current version, a migration of the database internals will have to be performed based on some heuristics.
If you have set up only one workshop with several groups and users, the single workshop will be migrated and visible. If you have defined multiple workshops, a new Server Workshop will be created containing the administrator user. In this case other workshops and users are not visible anymore (but still existing!). In this case the "Cascaded Workshop Administration" needs to be enabled. This will allow you to use multiple workshops in your installation. Information on how to do this can be found here.
Anyway it is recommended you check the relationships of your user objects to groups and workshops after migration and manually correct it where the migration algorithm did not perform the steps you would have expected.

12 Additional software installation

12.1 Spooler

12.1.1 General

EWA provides basically the same spooler programs as provided as part of the former WIS. Those spoolers have slightly been modified to fit better into the EWA architecture.

Note:
This description is not a replacement for the spooler manuals. It just describes installation and basic ideas behind the spoolers in the special context of EWA.
For a reference of the spooler manuals including a description of the file formats please refer to the documentation's table of contents.

Note:
In order to run the spoolers successfully you need at least 2 GB free harddisk space on the disk where the WIS database service is running (!) as complex SQL queries on the database may need temporary space on the disk. Especially the creation of DamageCode rules files need a lot of temporary harddisk space.

In order to be able to create spool files the spooler programs (ASRA spooler and Damagecode spooler) will have to be installed manually from the delivery media of EWA onto the same machine where the EWA installation resides. The installation will be described in more detail in the following sections.

The basic mechanism to spool out data (either via ASRA spooler or Damagecode spooler) and to make it accessible for download in the download area is:

• Install the spooler on the server machine of EWA.
  You will find the installer on the delivery media at
  [DVD-Drive]:\ewa\spooler\setup.exe
  This installer will install both spoolers at once.
• After successful installation you will find two more icons in the list of your favorites in the Internet Explorer:


• Check for a necessary configuration step.
  If you run an installation where the database system for WIS still remains on the same server machine as where the spooler is installed, you can start right away. (This is the standard case after a local or a basic central installation)
  If your database server for WIS data has been installed on a different server, you will have to tell the spooler programs what the hostname of the WIS database server is.
  You can do this by adding a parameter to the start of the spooler application. Simply start the application in the Windows commandline tool with the following command: startASRASpooler.bat -dbHost [YOUR_WIS_DB_HOST]. You can add additional parameters for the database:

  • Database Host: -dbHost [YOUR_WIS_DB_HOST]
  • Database Port: -dbPort [YOUR_WIS_DB_PORT]
  • Database Name: -dbName [YOUR_WIS_DB_NAME]
  • Database User: -dbUser [YOUR_WIS_DB_USERNAME]
  • Database Password: -dbPwd [YOUR_WIS_DB_PASSWORD]
• Ensure you have installed a valid WIS access authorization.
• Now you can successfully start the spoolers.
• Spool out results will be written by default into the [EWA_HOME]\downloads\spooler directory, separated for the Damagecode spooler and the ASRA spooler.
• By spooling these files into special directories within EWA's home directory, these files can be made available on every client with access to EWA and for users with access rights for spoolout files (typically users with administrative rights like server administrators and workshop administrators). But EWA has also the ability to be switched into a mode where any user can gain the right to download spoolout files, independent from its user role. See the UserManagement documentation how to do this.

12.1.2 Configuration

12.1.2.1 Spool file location

The location for the spool out files can be changed by editing the core configuration file core_cfg.xml within the section "Spooler". By default a relative path is set for both ASRA and Damagecode spooler which is interpreted as relative to the EWA_HOME directory. Server administrators which intend to run the spoolers in batch mode and in a clustered environment may want to change this location to a distinct location which is accessible by all EWA cluster nodes.

Default (relative path)

<SECTION name="Spooler">
    <PARAMETER name="ASRASpoolout">downloads/spooler/asra</PARAMETER>
    <PARAMETER name="DamageCodeSpoolout">downloads/spooler/damagecode</PARAMETER>
</SECTION>

Example (absolute path)

<SECTION name="Spooler">
    <PARAMETER name="ASRASpoolout">N:/ewanet_spooler_results/asra</PARAMETER>
    <PARAMETER name="DamageCodeSpoolout">N:/ewanet_spooler_results/asra/damagecode</PARAMETER>
</SECTION>

Note:
It is important for you to know that if you switch your file locations to a network path (accessed via UNC path or via mapped drive letters) you will have to change the account under which your EWA server is running to a user account being allowed to access network resources. The "system" account in Windows is not allowed to do so.

12.1.2.2 Access rights for spool out files

By default EWA gains users with user role "System Administrator" or "Workshop Administrator" access to the download area for spooled files. You can change this behavior to a per-user-setting by changing the value "userBasedDownloadPermissisons" to "true" in the section "General" of the  UserManagement configuration file um_cfg.xml. Once done you must explicitly assign the user right "Allow download of spooler files" to any user who should gain access to this download area. Even the system administrator does not have this right by default!

12.1.3 Interactively running the spoolers

12.1.3.1 ASRA Spooler (AWAT data spooler)

This spooler allows the extraction of ASRA related data from the WIS database in the same way as it was possible with "classic" WIS. After startup of the application you will see the following screen:

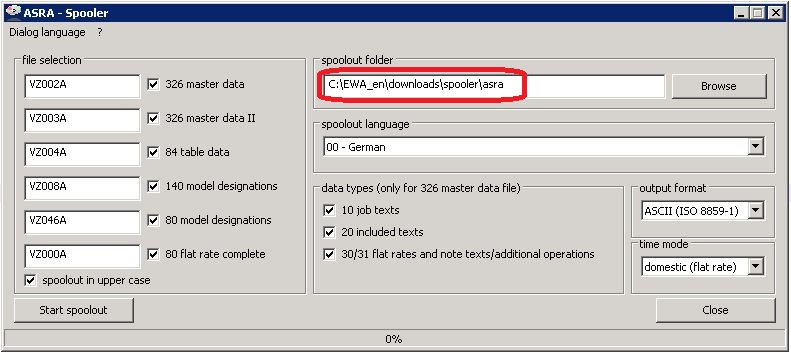

The marked text field shows the automatically pre-selected output folder for your files. It is recommended to not change this folder in order to ensure that your spool out files will be written into a location where EWA can find them to allow downloads via the EWA download page.

Note:
Please ensure that you do not accidently override existing files. Please move those files into a backup location before spooling out the files.

After spooling out the data you may login into EWA from any client and display the download section (assuming you have the rights to access those pages).

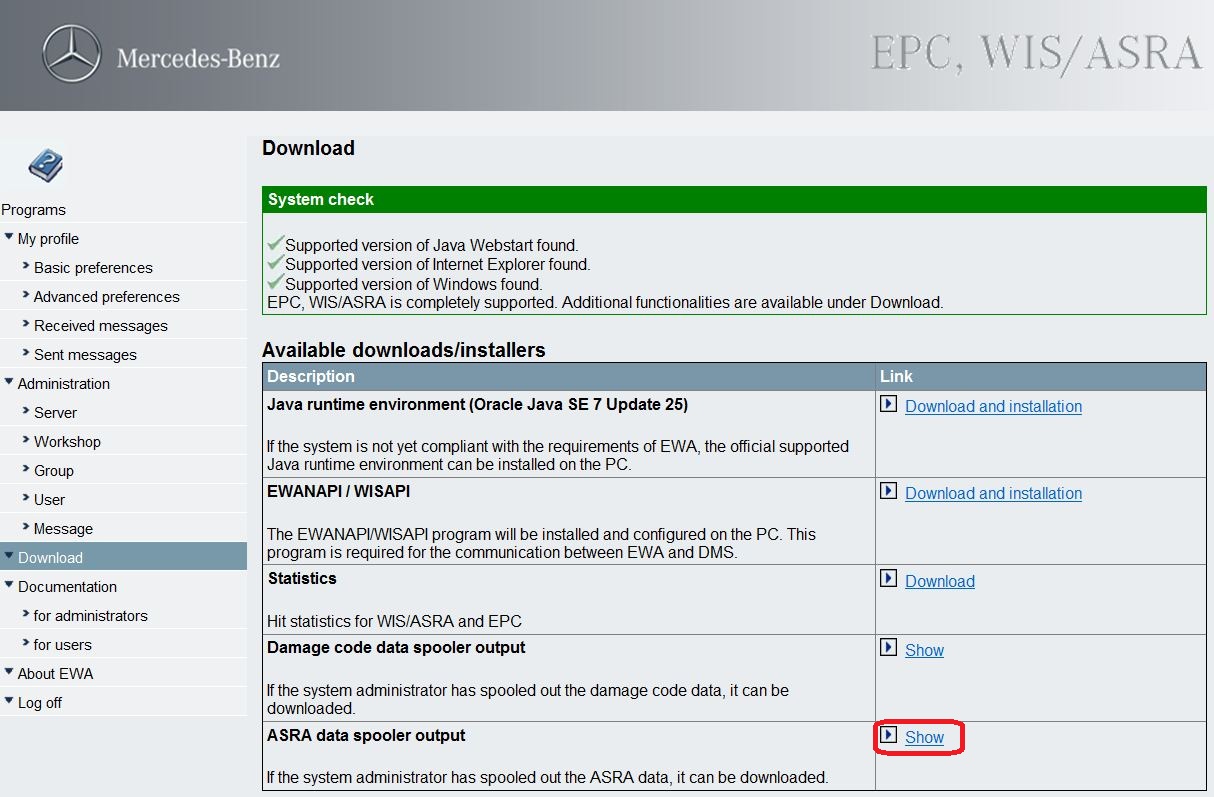

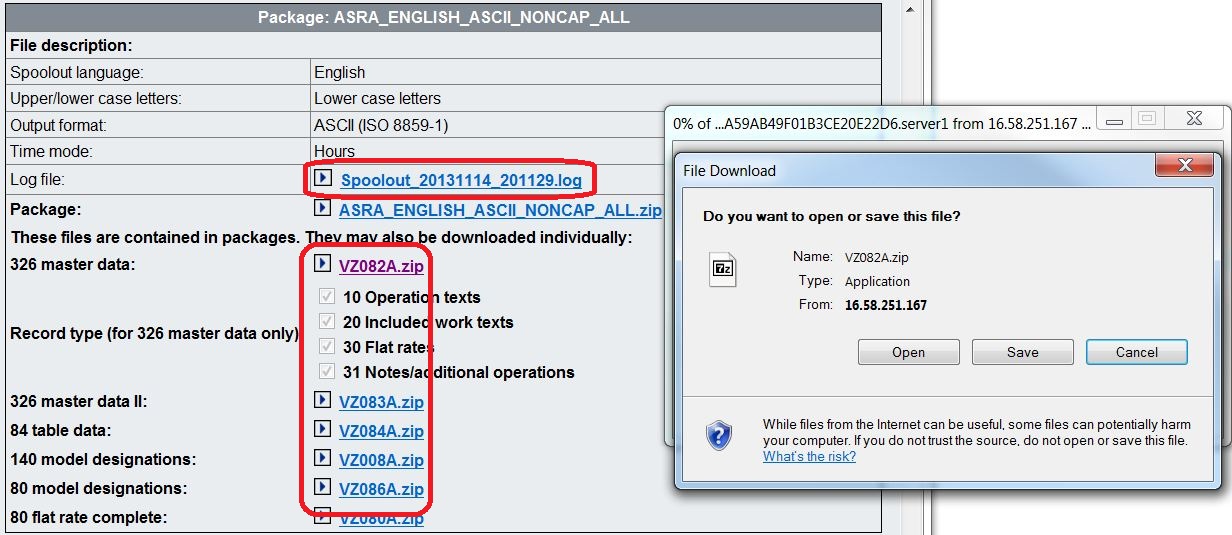

You may download the files for the ASRA Spooler from the section named "ASRA Spooler Output". You may even browse the log file from here. The download page will list all the file that have been spooled out along with the configuration information that was used to create those files. Clicking on one of the hyperlinks in the browser will make the browser start the download of the appropriate file.

12.1.3.2 Damagecode Spooler (SSL data spooler)

This spooler allows the extraction of damage code related data from the WIS database in the same way as it was possible with "classic" WIS. After startup of the application you will see the following screen:

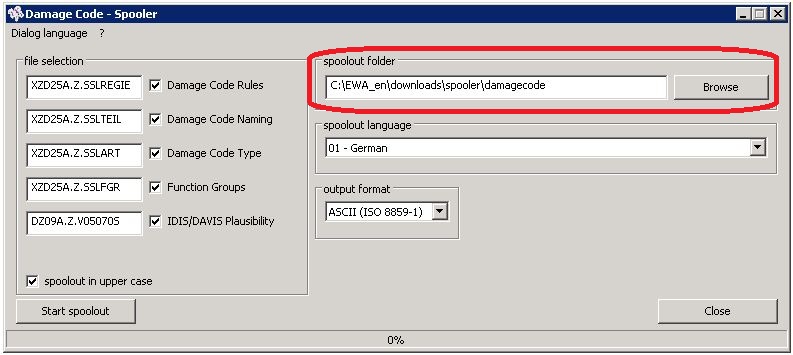

The marked text field shows the automatically pre-selected output folder for your files. It is recommended to not change the output folder in order to ensure that your spool out files will be written into a location where EWA can find them to allow downloads via the EWA download page.

Note:
Please ensure that you do not accidently override existing files. Please move those files into a backup location before spooling out the files.

After spooling out the data you may login into EWA from any client and display the download section (assuming you have the rights to access those pages).

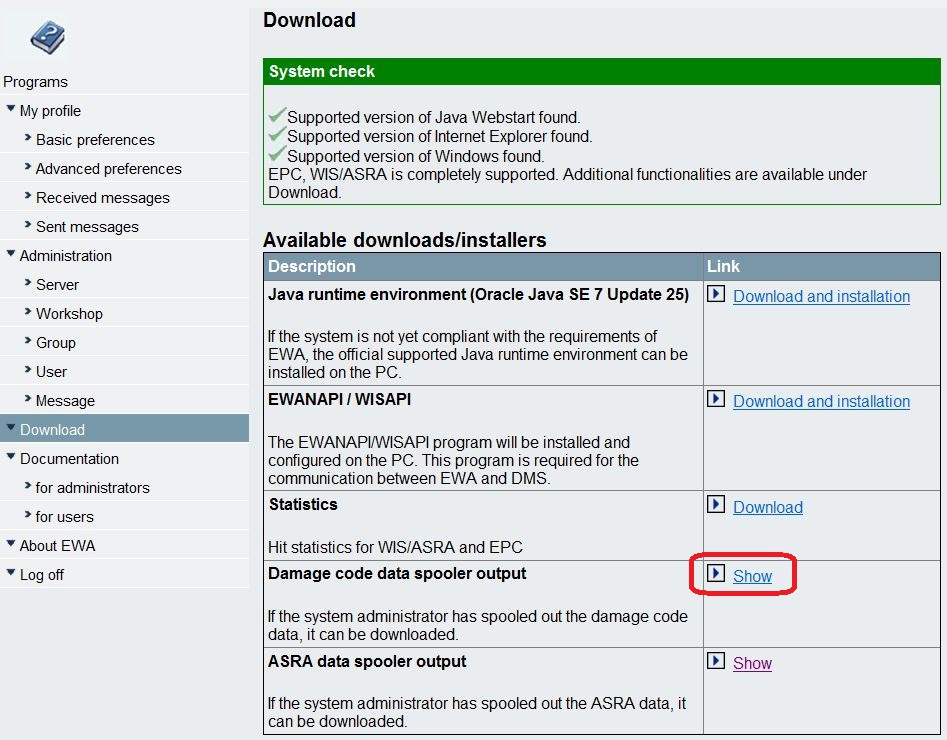

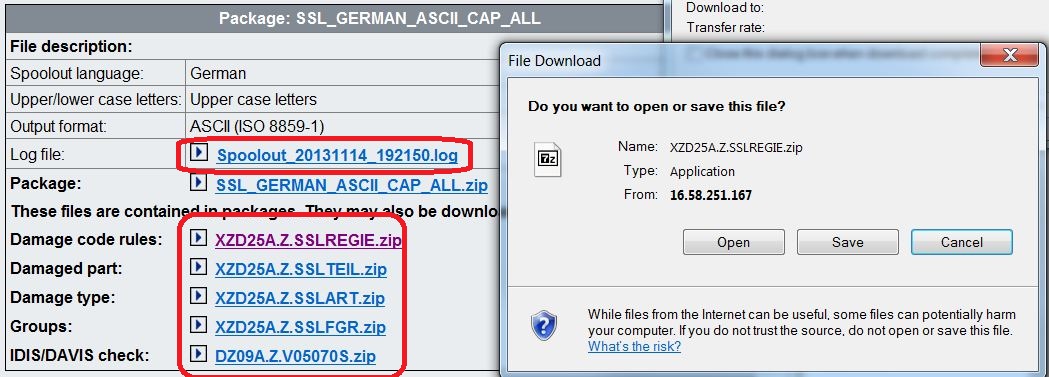

You may download the files for the Damage Code Spooler from the section named "Damage Code Spooler Output". You may even browse the log files from here.

12.1.4 Scheduled process of spooling / Spooling multiple "packages"

If you want to make use of more advanced features like

• Scheduled spooling
• Spooling several "packages" of files

you will want to make use of the option to run the spooler executables in "batch mode" which means that they do not show any user interface but get their configuration information from a separate ini-file which basically tells them what they have to do. Once you are sure that your created configuration files are valid and operating the way you expect them you can easily make this process part of the Windows Scheduler.

12.1.5 Additional Information

For additional information about using the ASRA and Damagecode Spoolers as well as detailed information about the spoolout files and structure please have a look at the different spooler documents in the documentation's table of contents.

13 Client software installation

13.1 Java Runtime Environment

Before users can start working with the EWA clients (EWANAPI installer, EPC , WIS ), you should ensure that the client systems are well prepared. If you have an officially supported  Java Runtime already installed on all the client machines, you are well prepared. Going to the Download Area of the User Management in your browser you will notice that the Web Application automatically tries to determine whether your clients are capable of executing EWA .

If you need to install a Java Runtime Environment, you can make use of the one provided in the downloads section. Simply click on "Download and Install" which will download the appropriate Java Installer.

Note:
After successful installation of a new Java Runtime Environment you may have to log off and on again to update the System check display as it cashes the settings per session to avoid nasty dialogs.

13.2 EWANAPI (External API to call EWA  clients for DMS calls and/or Xentry integration) (ewanapi.exe / wisapi.exe)

EWA provides an external application called EWANAPI.exe which allows external programs to communicate with the AccessGateway, the WIS  client  and/or the EPC  client.

This application was implemented with downwards compatibility in mind. Its command line arguments are compatible with the “classic” WISAPI.exe from the former WIS environment. It has been extended to support authentication at the AccessGateway and Shoppinglist calls to EPC .

Note:
EWANAPI has matured from a simple DMS integration layer to an API which is heavily used by the Xentry applications like Xentry TIPS or Xentry Diagnostics. Therefore it is recommended to have EWANAPI installed in always the most current version on the client PCs. A so called "automatic deployment" supports to keep the clients up to date. Read more about this feature here.

13.2.1 Automatic Installation via the integrated EWANAPI Installer

EWA provides a Java based installer which performs the necessary steps on each of the clients computers that otherwise would have to be executed manually.

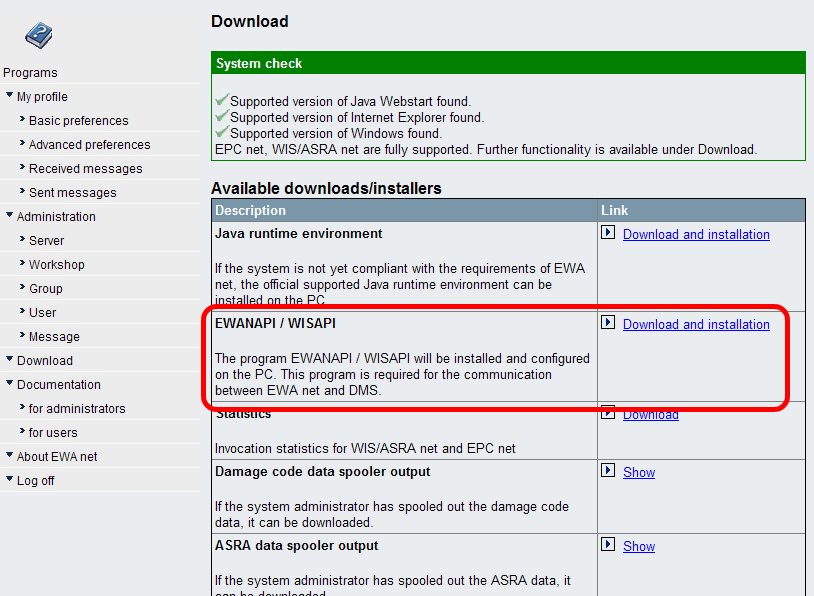

The EWANAPI installer can easily be accessed from the Download section of EWA . Simply click on the Download and Installation button. You can also do this anytime you want to update your EWANAPI environment.

Note:
This step can only be performed once a correct version of Java has been installed on the client. If no Java has yet been installed, just install it via the appropriate Download and Installation button just above the "EWANAPI/WISAPI" installer link.

13.2.1.1 Server side preparation (System administrators tasks):

The installer will always fetch the most recent EWANAPI installation files from the server installation directory [EWA-HOME]\clientapps\EWANAPI. The following files will be transferred to the clients by the installer:

• ewanapi.exe
• ewanapi.ini
• ewanapi.jar
• hpwin32.dll
• hpwin64.dll
• wis.exe
• wisapi.exe

The executables, the JAR and the DLL will be copied to the client during installation also (Note: ewanapi.exe will also be installed as wis.exe during installation on the client for WIS Classic backwards compatibility).

13.2.1.1.1 Rules for reading the specific server settings to be applied on clients

The installer and the autodeployment engine will check the directory for an appropriate ewanapi.ini file to read their settings from in the following order:

1. Check for an ewanapi.ini.<workshop_number>.
   The idea behind it is to allow a per workshop default setting which allows especially hosters of large central environments a high level of flexibility.
   Imagine a workshop still using Autoline 8.2. Let's assume this workshop has the workshop number "XG307". In this case you could copy the ewanapi.ini file with the name ewanapi.ini.XG307. Starting the installer from the download page will fetch the current users workshop information and try to read the workshop specific ewanapi.ini file and run the installation with settings provided there.
2. If such a file cannot be found the installer tries to read the file ewanapi.ini.installer.
3. If all those files could not be found the installer will fall back to the standard ewanapi.ini file and read its information for the installation from there.

Note:
The installer will take care about all these files and will migrate your existing settings during a software update on the server side.

The steps that now will be performed by the installer are

• The installer will check whether there is already a valid installation of EWANAPI on the client. If yes, it will switch itself into the update mode in which it just overrides the current installation with the most recent program files.
• If there is no installation found it will default to the mode which allows you to install EWANAPI completely from scratch on the client. Depending on what has been configured as a default installation directory for the EWANAPI files has already been chosen. This is typically something like "C:\Program Files\EWANAPI" (the Windows default directory for program installation). If really needed a different directory can easily be chosen by use of the "Change ..." button.

Note:
The user running the installer must have sufficient user rights to install files into the chosen directory. Depending on the policies of your local Operating System he may not even be allowed to install files or create directories within "C:\Program Files\EWANAPI". In this case a different directory must be chosen or the user may have to ask the local system administration.

• It creates the installation directory on the target machine inside the selected directory (i.e. the Windows default directory for program installation) as %ProgramFiles%\EWANAPI directory.
• It copies the necessary files from the EWA server onto the client PC
• It automatically adjusts the configuration file for EWANAPI (if auto-configuration values have been set in the configuration files (see table below). By default these values are being used. The installer makes use of placeholders within the ewanapi.ini file on the server to be expanded during installation within the local ewanapi.ini. See below for more information about these values:

• It extends the Windows system path variable (only if the user executing the installer has sufficient rights to do so; if not: simply extend the user's path variable). This step is needed to allow all system programs to find the ewanapi.exe without the need to know where exactly it is installed (required i.e. for the DMS Autoline)

Now for the tasks that you as system administrator will want to perform to influence the installation on the client side in the best way. The central point is the ewanapi.ini file. It contains a high level of flexibility to influence the client installation.

13.2.1.1.2 Automatic property replacement within ewanapi.ini

The following table documents that placeholders you can make use of if you like some properties to be filled automatically according to the runtime settings.

This allows high flexibility for the System Administrator. To allow the installer to derive the correct runtime settings from the server and automatically apply it to the EWANAPI installation on each of the clients, the pre-installed configuration file ewanapi.ini may directly be used.
But these values might also be overridden by static values.

Example:
If you specify:
Server=my.ewanet.com
the installer will leave this untouched.

But specifying
Server=%EWA_HOST%
indicates the installer it should replace this pattern by the server name that was used when accessing EWA  via the browser.

Hint:
The administrator might even decide to let EWANAPI determine the WebStart Installation automatically during runtime. In this case the complete line
WebStart=....
can be omitted or simply commented (default now in the delivered ini-file).

13.2.1.1.3 Influence target installation directory on the client PC

By default the preconfigured ewanapi.ini file will make the client installer install the EWANAPI files into %ProgramFiles%\EWANAPI. This behavior is controlled by the property:

[Installer]
InstallDir=%ProgramFiles%\EWANAPI


If you know of policies that inhibit the normal users in your environment to install in this directory because of insufficient rights do not let them run into trouble. Of course they can select a new path in the client anyway, but be so kind and change the default location already to a path where they will be allowed to install in. A fallback that should always work is:

[Installer]
InstallDir=%USERPROFILE%


13.2.1.1.4 Prefer SSO authentication before provided credentials

[General]
SSOPreferred=true

For environments that make use of NTLM Authentication within EWA it might be very helpful to enforce EWANAPI to try NTLM authentication first before making use of any credentials provided to EWANAPI. Thus the authentication consists of a maximum of 2 steps:

1) Try to authenticate via NTLM. If this does not succeed, perform step 2

2) Try to authenticate via credentials provided.

Note:
This setting might be useful especially within EWA  environments where the EWA  user database is not yet synchronized with the Dealer Directory of Daimler.
A good example is a call from TIPS to EWA  where TIPS expects a user to be setup in the local EWA  system. But if the userid does not exist (is not synchronized) within the local EWA  server, the call will fail.
If the local EWANAPI.ini contains the flag "SSOPreferred=true" and the EWA  server is configured for NTLM authentication then the applet tries to first authenticate via NTLM. TIPS in this case can make the call with  userid which is currently known to the underlying Windows system and the local EWA  server.

13.2.1.1.5 Address Proxy settings / problems

Proxy settings will be handled automatically by WebStart in the same way like for all the EWA clients. If the EWA clients like WIS or EPC or even the EWANAPI Installer itself work fine in a given environment, EWANAPI will do so as well using exactly the same mechanisms in WebStart.

Note:
The proxy properties have gone from the EWANAPI.ini file. Adding them will not harm, but the information will not be used anymore by EWANAPI.

13.2.1.1.6 Preparation for Autoline 8.30 / 8.35 integration

Version of Autoline 8.3 and above provide an out of the box support of EPC respectively WIS/ASRA via EWANAPI. The tradeoff is that it currently expects some files to be located in the user profile directory. If those files are not present Autoline 8.3 will not enable the EPC or WIS/ASRA buttons. The best way to install EWANAPI on user's PCs is by use of the following settings - which have to be set on the EWA server inside the file [EWA-HOME]\clientapps\ewanapi\ewanapi.ini:

[Installer]
InstallDir=%USERPROFILE%
Autoline_82_Enabled=false
Autoline_82_Allowed=false
Autoline_82_WISServer=
Autoline_82_EPCServer=


Note:
Modify the EWANAPI file on the server before you start installing EWANAPI on the clients! If you published EWANAPI to a client already before applying those changes on the server side, go ahead and deinstall EWANAPI on that client(s) and then install again after applying the changes on the server.

13.2.1.1.7 Preparation for Autoline 8.2 Emulation layer

For an Autoline 8.2 related installation the section for the Autoline 8.2 emulation layer must look like this - otherwise the user will not see the option for installation of the Autoline 8.2 emulation:

[Installer]
InstallDir=%ProgramFiles%\EWANAPI
Autoline_82_Enabled=true
Autoline_82_Allowed=true
Autoline_82_WISServer=
Autoline_82_EPCServer=


Note:
In order to make user specific changes, like using customer files or registry settings, the one installing EWANAPI for an Autoline 8.2 integration must have administrative rights.

Note:
Once EWANAPI with enabled Autoline 8.2 support is installed, then any classic applications like WIS Classic and EPC FP will not work in an integrated way anymore. Leave the server side of these applications installed, but do not make use of the clients anymore. A mixed environment is not supported and may lead to confusing situations..

• InstallDir:
  This property provides a recommended default for the user where on the client's PC the EWANAPI files will be installed. You can choose basically whatever directory the user has write access to. It is recommended to keep the given directory unless users run into problems when their PC's have highly restricted policies applied.
• Autoline_82_Enabled:
  If the Autoline 8.2 emulation layer is enabled by default, should be set to "true". However the value will be only considered, if also Autoline_82_Allowed is set to "true".
• Autoline_82_Allowed:
  If the emulation layer for Autoline 8.2 enabled at all, it must be set to "true".
• Autoline_82_WISServer:
  Provide the computer name of the server where the WIS server is installed and thus where the network shares for the JOBORDER directory are being accessed from. (\\<server>\JOBORDER)
• Autoline_82_EPCServer:
  Provide the computer name of the server where the EPC FP server is installed and thus where the network shares for the shopping list transfer files directory are being accessed from. (\\<server>\MBXX-mbxx)


13.2.1.1.8 Preparation for fallback server option

EWANAPI supports a flexible fallback setting within the EWANAPI.ini and EWANAPI Cookie files. The following properties indicate which alternative EWA server to contact under distinct error codes on the default server.

13.2.1.1.9 Preparation for Siteminder integration option

Server administrators of environments running their EWA application server behind a Siteminder secured infrastructure should review their settings whether they make use of the standard Siteminder Cookie name which is "SMSESSION". If not, they should set it to the corresponding value of their environment to help external accessors to set the cookie with the correct name.

13.2.1.1.10 Other settings

13.2.2 Automatic Deployment of EWANAPI

EWA  supports a feature called "AutoDeployment". This feature has been introduced with early Xentry releases as Xentry highly relies on EWANAPI as an integration layer.

The idea of automatic deployment is, that an EWA user will not have to take care about a renewal of an EWANAPI release on his client. In former times of EWA , deployment was implemented via a kind of a pull-mechanism, i.e. the user had to check for a new release on the server by himself. By use of automatic deployment, this can be switched now to a push-mechanism, i.e. the user will automatically be notified in case of a new release on the server.

The check of a new release is triggered during the start of the EWA clients (WIS  or EPC ): after startup, the application will query the current version of EWANAPI on the server. Based on the check of the "Version" field a more recent file on the server can be detected. In such a case the user will be notified. He than can decide to directly install the new EWANAPI or to delay the installation.

Automatic deployment can be controlled by the following attributes as part of the [Installer] section within the  ewanapi.ini file(s) on the server - and as mentioned above it can be controlled server or workshop specific by using specific EWANAPI.ini files on the server to control the behaviour:

In addition to these attributes, the following principles will additionally control automatic deployment:

• Automatic deplyoment can be deactivated for performance-tests to avoid unnecessary server contacts and unexpected stops of automatic test flows. Therefore, you have to set attribute ewa.client.connectivity.performance to "true", i.e.
  <property name="ewa.client.connectivity.performance" value="true"/>. This setting has to be done inside your jnlp launcher-file.

• Automatic deployment will never start the installer on Star Diagnosis Systems.

• The automatic deployment attributes as described above are read from the server in the following cascade (as mentioned already above):
  try to find ewanapi.ini.<Workshop ID of user>, i.e ewanapi.ini.000001
  if not available try to find ewanapi.ini.installer
  if not available try default file ewanapi.ini

• Automatic deployment will only give a notification, if the server's version of EWANAPI is more recent than the client version or if the client version does not indicate a version at all.

The following diagram shows the complete control of the automatic deployment:


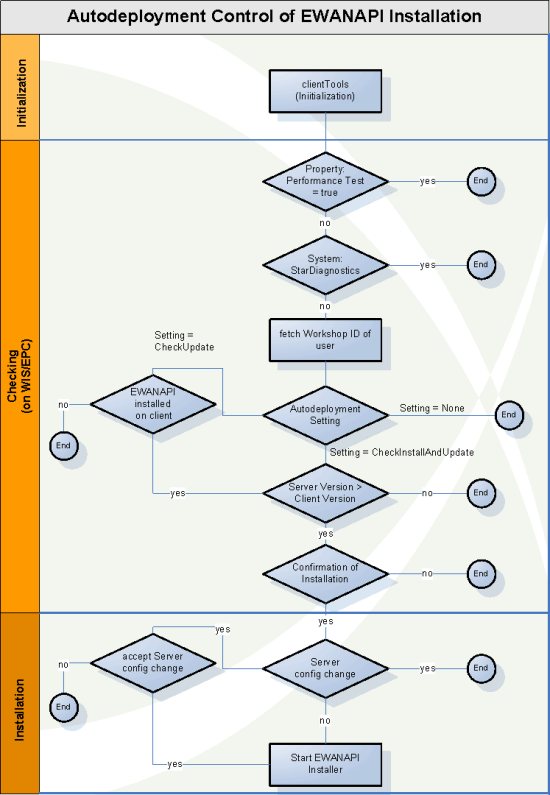

13.2.3 Manual Installation

On the delivery media you will find the WISAPI/EWANAPI program along with the required components in the folder:

[DVD-DRIVE]:\ewa\Apps\ewanapi\application

You can also find it after installation within the server installation directory

[EWA_HOME]:\clientapps\ewanapi

If you want to use these components, installation is fairly simple:

• Copy the folder including all files anywhere you like on the client’s system, i.e.
  C:\Program Files\EWANAPI
• Extend the system’s path variable by this folder.
  This is needed to ensure that both the executable as well as the DLL can be found.

If you enter “ewanapi.exe” or “wisapi.exe” in a Console window now, you should see a usage information listing all parameter sets that are known to ewanapi.exe.

13.2.4 Configuration

Configuration has to be performed in the ewanapi.ini file. Adjust the values inside this file according to your needs.

• Adjust at least the property “Server” pointing to the application server of your specific application.
• If SSL is used, change “Port” to "8443" (or whatever you have set the secure port to) and set “Secure-HTTP” to "true".
• You might want to configure a fallback server which EWANAPI will contact in distinct error situations contacting the default server.
  This can be achieved by setting the configuration properties "FallbackServer", "FallbackPort" and "FallbackSecure-HTTP" accordingly.
  The fallback server will by default be used when the server is unreachable or sends an HTTP-500 code. You may configure a comma separated list of other error codes by use of the property "FallbackErrorCodes". (See below for samples).

• Hosters who run their EWA  installation behind a Siteminder installation may want to configure the name of the Siteminder Cookie Name which their installation needs.
  The property name is "SiteminderCookieName". If none is given then EWANAPI will internally use the value "SMSESSION" which is the default of Siteminder.

• If you explicitly make use of the property WebStart to clearly tell EWANAPI which Java WebStart it should use, ensure that this property really points to the Java WebStart executable javaws.exe.
  As this locations varies with each different version of a client java, you will have to check and possibly adapt it to your special environment.
  If you are not sure about the path, just comment this property and let EWANAPI do the job itself. It will then dynamically find the current WebStart application from the Windows Registry. This is the recommended way.
• The variables %HOMEDRIVE% and %HOMEPATH% are Windows environment variables directing to the user's home directory. These do not need to be changed typically.

13.2.5 Proxy Server Configuration for EWANAPI

Proxy settings will be handled automatically by WebStart in the same way like for all the EWA  clients. If the EWA  clients like WIS  or EPC  or even the EWANAPI Installer itself work fine in a given environment, EWANAPI will do so as well using exactly the same mechanisms of Java WebStart.

Note:
The proxy properties that were part of the early configuration files of EWANAPI have gone from the EWANAPI.ini file. Adding them will not harm, but the information will not be used anymore by EWANAPI.

13.2.6 Example of an ewanapi.ini file

Following dump shows a sample ewanapi.ini file. Highlighted properties may be changed already on the server side's ini-file to preset valid values for the clients or may be set on the client side later on:

[HTTP-Config]
##################################
# ATTENTION!!!
##################################
# Some parameters are being set to
# %EWA_xxx%
# These will be replaced by the automatic installer for EWANAPI
# If you want to make those values explicit or do not distribute EWANAPI via the installer,
# please adjust the values on your own before distributing EWANAPI.
# EWANAPI will not work if it is being installed with those values during runtime.
##################################
#
#
# Name of the Server where the AccessGateway is installed
Server=%EWA_HOST%
# Server=localhost
#   if you want to state a server explicitly for all clients in advance
#
# Port on which the application is listening
# Typically this is 9000 for a normal HTTP connection, 8443 for a HTTPS connection
Port=%EWA_PORT%
# Port=9000
#   if you want to specify a port explicitly for all clients in advance
#
# Will you use HTTPS for a secure connection?
Secure-HTTP=%EWA_SECURE%
# Secure-HTTP=false
#

[Files]
# Where to store data files
# For future use maybe, not yet supported
WIS-Net_DATA=%HOMEDRIVE%%HOMEPATH%\data_wis.txt
WIS-Net_ERROR=%HOMEDRIVE%%HOMEPATH%\error_wis.txt
EPC-Net_DATA=%HOMEDRIVE%%HOMEPATH%\data_epc.txt
EPC-Net_ERROR=%HOMEDRIVE%%HOMEPATH%\error_epc.txt

[General]
Version=1.5.2.0
# Maximum seconds to wait until application has to respond on the channel
Timeout=60
# For STAR DIAGNOSIS and STANDALONE environments set this to "true"
Standalone=false
# Let the system find the file on its own
#WebStart=%EWA_WEBSTART%
# WebStart=%ProgramFiles%\Java\j2re1.4.2_05\javaws\javaws.exe
Extended_Parameters=
#WIS-Net_StarterApplication=%ProgramFiles%\Citrix\ICA Client\wfcrun32.exe "%ProgramFiles%\EWACTXCL\CTX-WIS.ica"
#EPC-Net_StarterApplication=%ProgramFiles%\Citrix\ICA Client\wfcrun32.exe "%ProgramFiles%\EWACTXCL\CTX-EPC.ica"
SSOPreferred=false

[Standalone]
WIS-Net_EXE=%WISNETEXE%
# Not yet supported as there is not yet a standalone EPC
EPC-Net_EXE=%EPCNETEXE%

[Installer]
# For Autoline 8.3x support choose
# InstallDir=%USERPROFILE%
InstallDir=%ProgramFiles%\EWANAPI
Autoline_82_Enabled=false
Autoline_82_Allowed=false
Autoline_82_WISServer=
Autoline_82_EPCServer=
# How do we want to control the automatic publication of EWA  clients?
# Valid values are:
# None: No check will ever be performed by this client
# CheckUpdate: Checks for new versions will only be performed if there is already an EWANAPI locally installed on that client
# CheckInstallAndUpdate: Suggest updates and even new installations if there is not yet an EWANAPI locally installed on that client
# ForceUpdate: Enforce new versions will only be performed if there is already an EWANAPI locally installed on that client
# ForceInstallAndUpdate: Enforce updates and even new installations if there is not yet an EWANAPI locally installed on that client
Autodeployment=CheckInstallAndUpdate
# Do we want to trace whether we accidently moved to another EWA  server?
# true: it will be monitored whether the current connection contacts the same server as the one registered inside EWANAPI
# false: there is no monitoring active at all
TraceServerChanges=true
# Do we want to leave an EWANAPI cookie on the client ?
# true: the client will leave the information about: EWA  Server, HTTP-Port and HTTP(S) inside a small ".ewanapi_cookie" file in the user's home directory
# false: no cookie will be left. Existing cookie will be removed for the current user.
LeaveCookie=true
# The number of seconds after which a timeout will occur if the files which need to be overwritten during the install process are still locked.
TimeoutStillLocked=120

14 References

This section lists further documentation. No parts of the following documents were repeated here to ensure consistency within the information provided.

14.0.1 Admin Tool Guide

Filename: [DVD-DRIVE]:\ewa\doc\AdminToolGuide.htm
Authors: Manuel Gutjahr, Martin Tolksdorf (HP)

14.0.2 User Administration document

Filename: [DVD-DRIVE]:\ewa\doc\HP-UM_UserGuide.htm
Authors: Manuel Gutjahr, Martin Tolksdorf (HP)

14.0.3 EWANAPI description document

Filename: [DVD-DRIVE]:\ewa\doc\EWANAPI_Description.htm
Authors: Manuel Gutjahr, Martin Tolksdorf (HP)

14.0.4 WIS Release Notes

Part of the global ReleaseNotes: [DVD-DRIVE]:\ewa\doc\ReleaseNotes.htm
Authors: Martin Woschko(devoteam)

14.0.5 EPC Release Notes

Part of the global ReleaseNotes: [DVD-DRIVE]:\ewa\doc\ReleaseNotes.htm
Authors: Rainer Englisch (SBS)
